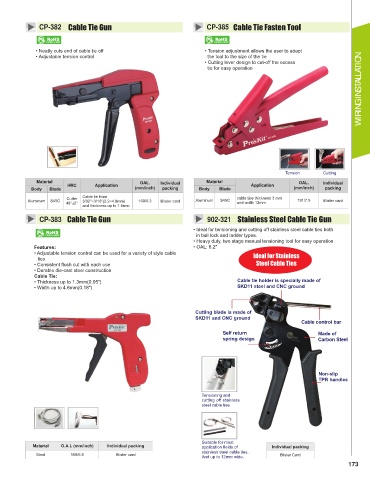

CP-382 Cable Tie Gun CP-385 Cable Tie Fasten Tool

• Neatly cuts end of cable tie off • Tension adjustment allows the user to adapt
WIRING INSTALLATION
• Adjustable tension control the tool to the size of the tie
• Cutting lever design to cut-off the excess
tie for easy operation

Tension Cutting
Material OAL. Individual Material OAL. Individual
HRC Application Application
Body Blade (mm/inch) packing Body Blade (mm/inch) packing
Cutter Cable tie from cable ties thickness 3 mm
Aluminum S45C 48°±2° 3/32"~3/16"(2.2~4.8mm) 160/6.3 Blister card Aluminum S45C and width 12mm 191/7.5 Blister card
and thickness up to 1.6mm
CP-383 Cable Tie Gun 902-321 Stainless Steel Cable Tie Gun

• Ideal for tensioning and cutting off stainless steel cable ties both
in ball lock and ladder types.
• Heavy duty, two stage manual tensioning tool for easy operation
Features: • OAL: 8.2"
• Adjustable tension control can be used for a variety of style cable Ideal for Stainless
ties
• Consistent flush cut with each use Steel Cable Ties
• Durable die-cast steel construction
Cable Tie:
• Thickness up to 1.3mm(0.05") Cable tie holder is specially made of
• Width up to 4.6mm(0.18") SKD11 steel and CNC ground

Cutting blade is made of
SKD11 and CNC ground
Cable control bar
Self return Made of
spring design Carbon Steel

Non-slip
TPR handles

Tensioning and
cutting off stainless
steel cable ties

Suitable for most
Material O.A.L (mm/inch) Individual packing application fields of Individual packing
stainless steel cable ties.
Steel 168/6.6 Blister card Blister Card
And up to 12mm wide.
173
