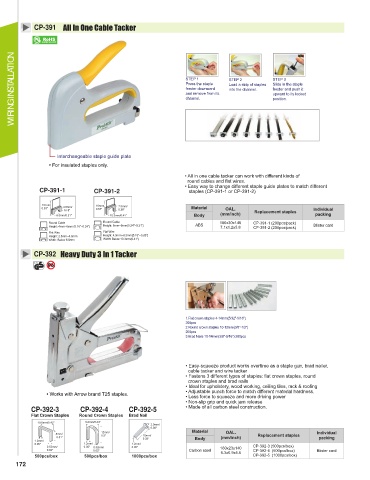

CP-391 All In One Cable Tacker

WIRING INSTALLATION STEP 1 STEP 2 STEP 3

Press the staple
Load a strip of staples
Slide in the staple
feeder downward
feeder and push it
into the channel.
and remove from its
upward to its locked
channel.
position.

Interchangeable staple guide plate
• For insulated staples only.

• All in one cable tacker can work with different kinds of
round cables and flat wires.
CP-391-1 CP-391-2 • Easy way to change different staple guide plates to match different
staples (CP-391-1 or CP-391-2)

16mm/ 4.5mm/ 16mm/ 7.0mm/
0.63" 0.63" Material OAL.
0.18" 0.28" Replacement staples Individual
8.0mm/0.31" 10.3mm/0.41" Body (mm/inch) packing
Round Cable Round Cable 180x30x148 CP-391-1 (200pcs/pack)
Height: 4mm~6mm (0.16"~0.24") Height: 6mm~8mm(0.24"~0.31") ABS 7.1x1.2x5.8 CP-391-2 (200pcs/pack) Blister card
Flat Wire Flat Wire
Height: 2.5mm~4.0mm Height: 4.5mm~6.3mm(0.18"~0.25")
Width: Below 8.0mm Width: Below 10.3mm(0.41")
CP-392 Heavy Duty 3 In 1 Tacker

1.Flat crown staples 4-14mm(5/32"-9/16")
200pcs
2.Round crown staples 10-12mm(3/8"-1/2")
200pcs
3.Brad Nails 10-14mm(3/8"-9/16") 200pcs

• Easy-squeeze product works overtime as a staple gun, brad nailer,
cable tacker and wire tacker
• Fastens 3 different types of staples: flat crown staples, round
crown staples and brad nails
• Ideal for upholstery, wood working, ceiling tiles, rack & roofing
• Works with Arrow brand T25 staples. • Adjustable punch force to match different material hardness.
• Less force to squeeze and more driving power
• Non-slip grip and quick jam release
CP-392-3 CP-392-4 CP-392-5 • Made of all carbon steel construction.
Flat Crown Staples Round Crown Staples Brad Nail
10.6mm/0.42" 6.2mm/0.24"
2.0mm/
0.08"
12mm/ Material OAL. Individual
8mm/ 10mm/
0.31" 0.5" (mm/inch) Replacement staples packing
1.2mm/ 0.38" Body
0.05" 1.2mm/ 1.2mm/
0.52mm/ 0.05" 0.52mm/ 0.05" 160x23x140 CP-392-3 (500pcs/box)
0.02" 0.02" Carbon steel 6.3x0.9x5.5 CP-392-4 (500pcs/box) Blister card
500pcs/box 500pcs/box 1000pcs/box CP-392-5 (1000pcs/box)
