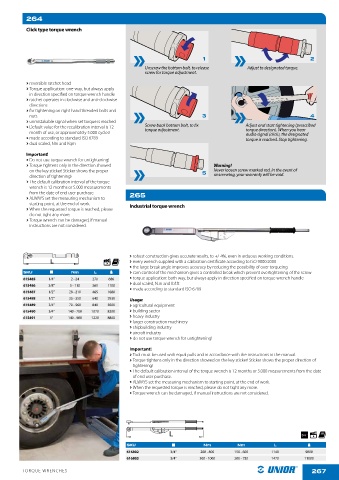

264
Click type torque wrench

1 2
Unscrew the bottom bolt, to release Adjust to designated torque.
screw for torque adjustment.

› reversible ratchet head
› Torque appllication: one-way, but always apply
in direction speci"ed on torque wrench handle

› ratchet operates in clockwise and anti-clockwise
directions
› for tightening on right hand threaded bolts and
nuts 3 4
› unmistakable signal when set torque is reached

› Default value for the recalibration interval is 12 Screw back bottom bolt, to !x Adjust and start tightening (prescribed
month of use, or approximately 5.000 cycles! torque adjustment. torque direction). When you hear
audio signal (click), the designated
› made according to standard ISO 6789 torque is reached. Stop tightening.
› dual scaled, Nm and Kgm
Important!
› Do not use torque wrench for untightening!
› Torque tightens only in the direction showed Warning!
on the key sticker! Sticker shows the proper 5 Never loosen screw marked red. In the event of
direction of tightening! unscrewing, your warranty will be void.
› The default calibration interval of the torque
wrench is 12 months or 5.000 measurements
from the date of end user purchase.
› ALWAYS set the measuring mechanism to 265
starting point, at the end of work. Industrial torque wrench
› When the requested torque is reached, please
do not tight any more.
› Torque wrench can be damaged, if manual
instructions are not considered.

› robust construction gives accurate results, to +/-4%, even in arduous working conditions.
› every wrench supplied with a calibration certi"cate according to ISO 9000:2000

› the large break angle improves accuracy by reducing the possibility of over torqueing
SKU Nm L › cam control of the mechanism gives a controlled break which prevent overtightening of the screw

615485 1/4" 2 - 24 270 686 › torque application: both way, but always apply in direction speci"ed on torque wrench handle
615486 3/8" 5 - 110 360 1100 › dual scaled, N.m and lbf.ft
› made according to standard ISO 6789
615487 1/2" 28 - 210 465 1680
615488 1/2" 35 - 350 640 2930 Usage:
615489 3/4" 70 - 560 840 5600 › agricultural equipment
615490 3/4" 140 - 700 1070 8200 › building sector
615491 1" 140 - 980 1220 8800 › heavy industry
› larger construction machinery
› shipbuilding industry
› aircraft industry
› do not use torque wrench for untightening!
Important!
› Tool must be used with equal pulls and in accordance with the instructions in the manual.
› Torque tightens only in the direction showed on the key sticker! Sticker shows the proper direction of
tightening!
› The default calibration interval of the torque wrench is 12 months or 5.000 measurements from the date
of end user purchase.
› ALWAYS set the measuring mechanism to starting point, at the end of work.
› When the requested torque is reached, please do not tight any more.
› Torque wrench can be damaged, if manual instructions are not considered.

SKU Nm Nm L
616802 3/4" 200 - 800 150 - 600 1140 9000
616803 3/4" 300 - 1000 200 - 750 1470 11000

TORQUE WRENCHES 267
