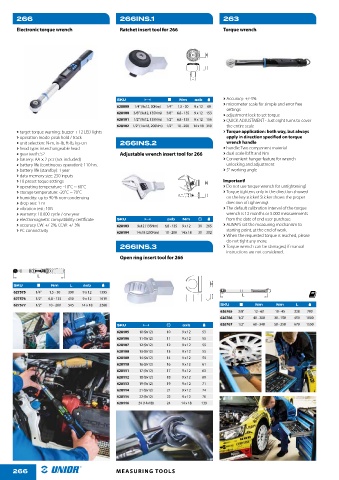

266 266INS.1 263
Electronic torque wrench Ratchet insert tool for 266 Torque wrench

› Accuracy: +/-3%
SKU Nm axb
› micrometer scale for simple and error free
628099 1/4" (9x12, 30Nm) 1/4" 1,5 - 30 9 x 12 69 settings
628100 3/8" (9x12, 135Nm) 3/8" 6,8 - 135 9 x 12 153
› adjustment lock to set torque
628101 1/2" (9x12, 135Nm) 1/2" 6,8 - 135 9 x 12 156 › QUICK ADJUSTMENT - Just eight turns to cover
628102 1/2" (14x18, 200Nm) 1/2" 10 - 200 14 x 18 310 the entire scale
› target torque warning: buzzer + 12 LED lights › Torque application: both way, but always

› operation mode: peak hold / track apply in direction speci!ed on torque
› unit selection: N-m, in-lb, ft-lb, kg-cm 266INS.2 wrench handle
› head type: interchangeable head › handle: Two component material
› gear teeth: 52 Adjustable wrench insert tool for 266 › dual scale lbf.ft and Nm
› battery: AA × 2 pcs (not included) › Convenient hanger feature for wrench
› battery life (continuous operation): 110 hrs. unlocking and adjustment
› battery life (standby): 1 year › 5° working angle
› data memory size: 250 inputs
› 10 preset toque settings Important!
› operating temperature: -10˚C ~ 60˚C › Do not use torque wrench for untightening!
› storage temperature: -20˚C ~ 70˚C › Torque tightens only in the direction showed
› humidity: up to 90 % non-condensing on the key sticker! Sticker shows the proper
› drop test: 1 m direction of tightening!
› vibration test: 10G › The default calibration interval of the torque
› warranty: 10.000 cycle / one year wrench is 12 months or 5.000 measurements

› electromagnetic compatibility certi"cate SKU axb Nm from the date of end user purchase.
› accuracy CW: +/-2%, CCW: +/-3% 628103 9x12 (135Nm) 6,8 - 135 9 x 12 30 265 › ALWAYS set the measuring mechanism to
› PC connectivity 628104 14x18 (200Nm) 10 - 200 14 x 18 30 302 starting point, at the end of work.
› When the requested torque is reached, please
do not tight any more.
266INS.3 › Torque wrench can be damaged, if manual
instructions are not considered.
Open ring insert tool for 266

SKU Nm L axb
627575 1/4" 1,5 - 30 390 9 x 12 1395

627576 1/2" 6,8 - 135 410 9 x 12 1619
627577 1/2" 10 - 200 545 14 x 18 2268 SKU Nm Nm L
626765 3/8" 12 - 60 10 - 45 328 700
626766 1/2" 40 - 200 30 - 150 459 1000
626767 1/2" 60 - 340 50 - 250 679 1550
SKU axb
628105 10 (9x12) 10 9 x 12 53
628106 11 (9x12) 11 9 x 12 55
628107 12 (9x12) 12 9 x 12 55
628108 13 (9x12) 13 9 x 12 55
628109 14 (9x12) 14 9 x 12 59
628110 16 (9x12) 16 9 x 12 61
628111 17 (9x12) 17 9 x 12 63
628112 18 (9x12) 18 9 x 12 69
628113 19 (9x12) 19 9 x 12 71
628114 21 (9x12) 21 9 x 12 74
628115 22 (9x12) 22 9 x 12 76
628116 24 (14x18) 24 14 x 18 139

266 MEASURING TOOLS
