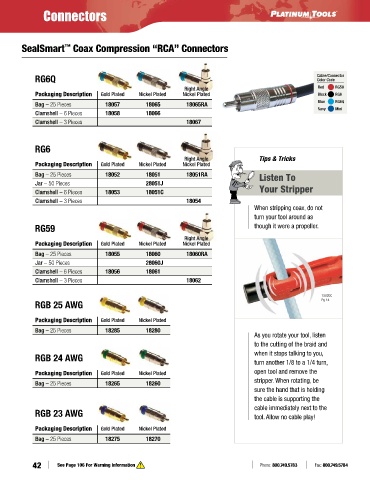

Connectors

SealSmart Coax Compression “RCA” Connectors
™

RG6Q Cable/Connector
Color Code
Right Angle Red RG59
Packaging Description Gold Plated Nickel Plated Nickel Plated Black RG6
Bag – 25 Pieces 18057 18065 18065RA Blue RG6Q
Navy Mini
Clamshell – 6 Pieces 18058 18066
Clamshell – 3 Pieces 18067

RG6
Right Angle Tips & Tricks
Packaging Description Gold Plated Nickel Plated Nickel Plated
Bag – 25 Pieces 18052 18051 18051RA Listen To
Jar – 50 Pieces 28051J
Clamshell – 6 Pieces 18053 18051C Your Stripper
Clamshell – 3 Pieces 18054
When stripping coax, do not
turn your tool around as
RG59 though it were a propeller.
Right Angle
Packaging Description Gold Plated Nickel Plated Nickel Plated
Bag – 25 Pieces 18055 18060 18060RA
Jar – 50 Pieces 28060J
Clamshell – 6 Pieces 18056 18061
Clamshell – 3 Pieces 18062

15020C
RGB 25 AWG Pg 14

Packaging Description Gold Plated Nickel Plated
Bag – 25 Pieces 18285 18280
As you rotate your tool, listen
to the cutting of the braid and

RGB 24 AWG when it stops talking to you,
turn another 1/8 to a 1/4 turn,
Packaging Description Gold Plated Nickel Plated open tool and remove the
Bag – 25 Pieces 18265 18260 stripper. When rotating, be
sure the hand that is holding
the cable is supporting the
cable immediately next to the
RGB 23 AWG tool. Allow no cable play!

Packaging Description Gold Plated Nickel Plated
Bag – 25 Pieces 18275 18270

42 See Page 106 For Warning Information Phone: 800.749.5783 Fax: 800.749.5784
