Strippers

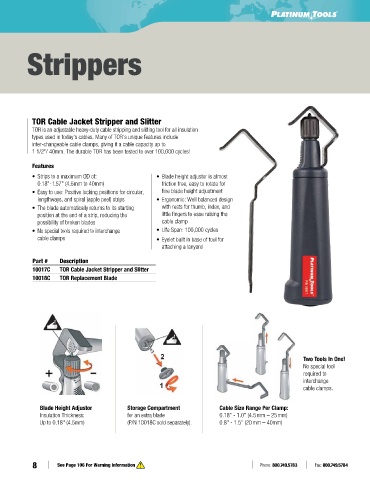

TOR Cable Jacket Stripper and Slitter
TOR is an adjustable heavy-duty cable stripping and slitting tool for all insulation
types used in today’s cables. Many of TOR’s unique features include
inter-changeable cable clamps, giving it a cable capacity up to
1 1/2"/ 40mm. The durable TOR has been tested to over 100,000 cycles!

Features
• Strips to a maximum OD of: • Blade height adjustor is almost
0.18"-1.57" (4.5mm to 40mm) friction free, easy to rotate for

• Easy to use: Positive locking positions for circular, fine blade height adjustment
lengthways, and spiral (apple peel) strips • Ergonomic: Well balanced design
• The blade automatically returns to its starting with rests for thumb, index, and
position at the end of a strip, reducing the little fingers to ease raising the
possibility of broken blades cable clamp
• No special tools required to interchange • Life Span: 100,000 cycles
cable clamps • Eyelet built in base of tool for
attaching a lanyard

Part # Description
10017C TOR Cable Jacket Stripper and Slitter
10018C TOR Replacement Blade

Two Tools In One!
No special tool
required to
interchange
cable clamps.

Blade Height Adjustor Storage Compartment Cable Size Range Per Clamp:
Insulation Thickness: for an extra blade 0.18" - 1.0" (4.5mm – 25mm)
Up to 0.18" (4.5mm) (P/N 10018C sold separately). 0.8" - 1.5" (20mm – 40mm)
