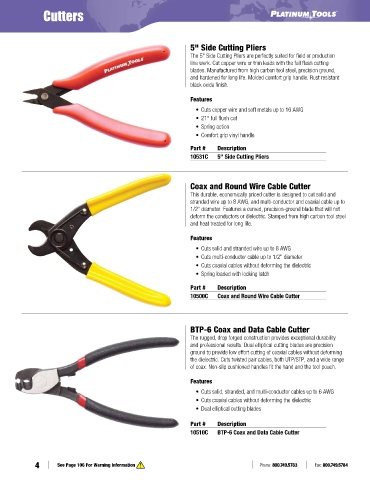

Page 6 - PlatinumTools端子光纤工具

Cutters

5" Side Cutting Pliers
The 5" Side Cutting Pliers are perfectly suited for field or production
line work. Cut copper wire or trim leads with the full flush cutting
blades. Manufactured from high carbon tool steel, precision ground,
and hardened for long life. Molded comfort grip handle. Rust resistant
black oxide finish.

Features
• Cuts copper wire and soft metals up to 16 AWG
• 21° full flush cut
• Spring action
• Comfort grip vinyl handle

Part # Description
10531C 5" Side Cutting Pliers

Coax and Round Wire Cable Cutter
This durable, economically priced cutter is designed to cut solid and
stranded wire up to 8 AWG, and multi-conductor and coaxial cable up to
1/2" diameter. Features a curved, precision-ground blade that will not
deform the conductors or dielectric. Stamped from high carbon tool steel
and heat treated for long life.

Features
• Cuts solid and stranded wire up to 8 AWG
• Cuts multi-conductor cable up to 1/2" diameter
• Cuts coaxial cables without deforming the dielectric
• Spring loaded with locking latch
Part # Description
10500C Coax and Round Wire Cable Cutter

BTP-6 Coax and Data Cable Cutter
The rugged, drop forged construction provides exceptional durability
and professional results. Dual elliptical cutting blades are precision
ground to provide low effort cutting of coaxial cables without deforming
the dielectric. Cuts twisted pair cables, both UTP/STP, and a wide range
of coax. Non-slip cushioned handles fit the hand and the tool pouch.

Features
• Cuts solid, stranded, and multi-conductor cables up to 6 AWG
• Cuts coaxial cables without deforming the dielectric
• Dual elliptical cutting blades

Part # Description
10510C BTP-6 Coax and Data Cable Cutter
