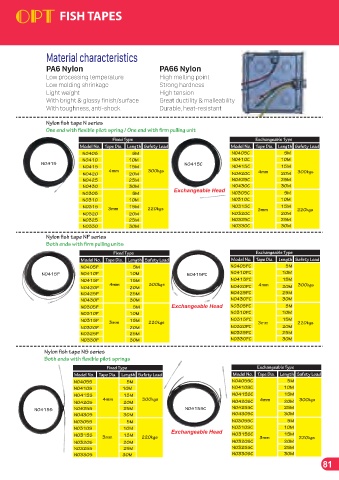

FISH TAPES

Nylon sh tape N series
One end with exible pilot spring / One end with rm pulling unit
Fixed Type Exchangeable Type
Model No. Tape Dia. Length Safety Load Model No. Tape Dia. Length Safety Load
N0405 5M N0405C 5M
N0410 10M N0410C 10M
N0415 N0415C
N0415 15M N0415C 15M
4mm 300kgs 4mm 300kgs
N0420 20M N0420C 20M
N0425 25M N0425C 25M
N0430 30M N0430C 30M
N0305 5M N0305C 5M
N0310 10M N0310C 10M
N0315 15M N0315C 15M
3mm 220kgs
3mm 220kgs
N0320 20M N0320C 20M
N0325 25M N0325C 25M
N0330 30M N0330C 30M
Nylon sh tape NP series
Both ends with rm pulling units
Fixed Type Exchangeable Type
Model No. Tape Dia. Length Safety Load Model No. Tape Dia. Length Safety Load
N0405P 5M N0405PC 5M
N0415P N0410P 10M N0415PC N0410PC 10M
N0415P 15M N0415PC 15M
4mm 300kgs 4mm 300kgs
N0420P 20M N0420PC 20M
N0425P 25M N0425PC 25M
N0430P 30M N0430PC 30M
N0305P 5M N0305PC 5M
N0310P 10M N0310PC 10M
N0315P 15M N0315PC 15M
3mm 220kgs
3mm 220kgs
N0320P 20M N0320PC 20M
N0325P 25M N0325PC 25M
N0330P 30M N0330PC 30M
Nylon sh tape NS series
Both ends with exible pilot springs
Fixed Type Exchangeable Type
Model No. Tape Dia. Length Safety Load Model No. Tape Dia. Length Safety Load
N0405S 5M N0405SC 5M
N0410S 10M N0410SC 10M
N0415S 15M N0415SC 15M
4mm 300kgs
4mm 300kgs
N0420S 20M N0420SC 20M
N0415S N0425S 25M N0415SC N0425SC 25M
N0430S 30M N0430SC 30M
N0305S 5M N0305SC 5M
N0310S 10M N0310SC 10M
N0315S 15M N0315SC 15M
3mm 220kgs
3mm 220kgs
N0320S 20M N0320SC 20M
N0325S 25M N0325SC 25M
N0330S 30M N0330SC 30M
