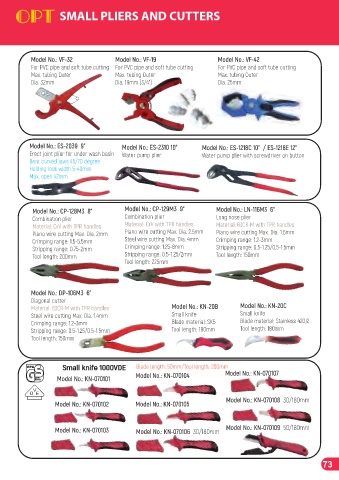

Page 79 - OPT英文手动工具2023

SMALL PLIERS AND CUTTERS

Model No.: VF-32 Model No.: VF-19 Model No.: VF-42
For PVC pipe and soft tube cutting For PVC pipe and soft tube cutting For PVC pipe and soft tube cutting
Max. tubing Outer Max. tubing Outer Max. tubing Outer
Dia. 32mm Dia. 19mm (3/4”) Dia. 25mm

Model No.: ES-2039 9” Model No.: ES-2310 10” Model No.: ES-1218C 10” / ES-1218E 12”
Erect joint plier for under wash basin Water pump plier Water pump plier with screwdriver on button
Bent curved jaws 45/70 degree
Holding lock width 5-40mm
Max. open 42mm

Model No.: CP-128M3 8” Model No.: CP-129M3 9” Model No.: LN-116M3 6”
Combination plier Combination plier Long nose plier
Material: CrV with TPR handles Material: CrV with TPR handles Material: 63CR-M with TPR handles
Piano wire cutting Max. Dia. 2mm Piano wire cutting Max. Dia. 2.5mm Piano wire cutting Max. Dia. 1.6mm
Crimping range: 1.5-5.5mm Steel wire cutting Max. Dia. 4mm Crimping range: 1.2-3mm
Stripping range: 0.75-2mm Crimping range: 1.25-8mm Stripping range: 0.5-1.25/0.5-1.5mm
Tool length: 200mm Stripping range: 0.5-1.25/2mm Tool length: 150mm
Tool length: 225mm

Model No.: DP-106M3 6”
Diagonal cutter
Material: 63CR-M with TPR handles Model No.: KN-20B Model No.: KN-20C
Steel wire cutting Max. Dia. 1.4mm Small knife Small knife
Crimping range: 1.2-3mm Blade material: SK5 Blade material: Stainless 420J2
Stripping range: 0.5-1.25/0.5-1.5mm Tool length: 180mm Tool length: 180mm
Tool length: 150mm

Small knife 1000VDE Blade length: 50mm/Tool length: 200mm
Model No.: KN-070101 Model No.: KN-070104 Model No.: KN-070107

Model No.: KN-070108 30/180mm
Model No.: KN-070102 Model No.: KN-070105

Model No.: KN-070103 Model No.: KN-070106 30/180mm Model No.: KN-070109 50/180mm

73
