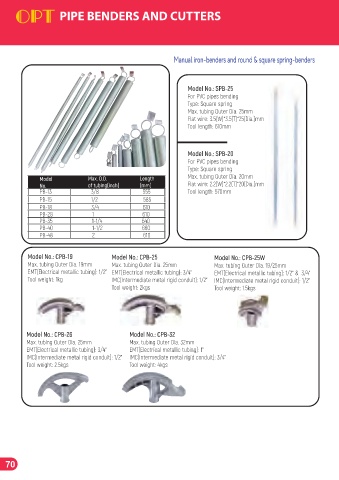

PIPE BENDERS AND CUTTERS

Manual iron-benders and round & square spring-benders

Model No.: SPB-25
For PVC pipes bending
Type: Square spring
Max. tubing Outer Dia. 25mm
Flat wire: 3.5(W)*3.5(T)*25(Dia.)mm
Tool length: 610mm

Model No.: SPB-20
For PVC pipes bending
Type: Square spring
Model Max. O.D. Length Max. tubing Outer Dia. 20mm
No. of tubing(inch) (mm) Flat wire: 2.2(W)*2.2(T)*20(Dia.)mm
PB-13 3/8 555 Tool length: 570mm
PB-15 1/2 585
PB-18 3/4 610
PB-28 1 610
PB-35 1-1/4 640
PB-40 1-1/2 660
PB-48 2 610

Model No.: CPB-19 Model No.: CPB-25 Model No.: CPB-25W
Max. tubing Outer Dia. 19mm Max. tubing Outer Dia. 25mm Max. tubing Outer Dia. 19/25mm
EMT(Electrical metallic tubing): 1/2” EMT(Electrical metallic tubing): 3/4” EMT(Electrical metallic tubing): 1/2” & 3/4”
Tool weight: 1kg IMC(Intermediate metal rigid conduit): 1/2” IMC(Intermediate metal rigid conduit): 1/2”
Tool weight: 2kgs Tool weight: 1.5kgs

Model No.: CPB-26 Model No.: CPB-32
Max. tubing Outer Dia. 25mm Max. tubing Outer Dia. 32mm
EMT(Electrical metallic tubing): 3/4” EMT(Electrical metallic tubing): 1”
IMC(Intermediate metal rigid conduit): 1/2” IMC(Intermediate metal rigid conduit): 3/4”
Tool weight: 2.5kgs Tool weight: 4kgs

70
