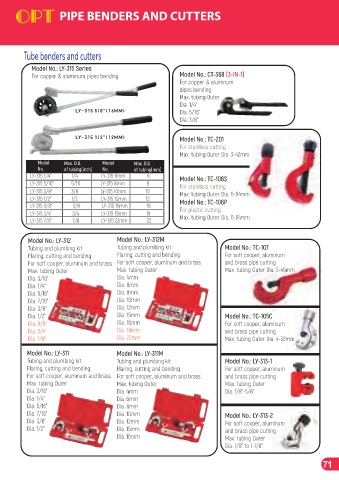

PIPE BENDERS AND CUTTERS

Tube benders and cutters

Model No.: LY-315 Series
For copper & aluminum pipes bending Model No.: CT-368 (3-IN-1)
For copper & aluminum
pipes bending
Max. tubing Outer
Dia. 1/4”
LY-315 5/8”(16MM) Dia. 5/16”
Dia. 3/8”

LY-315 1/2”(12MM) Model No.: TC-201
For stainless cutting
Max. tubing Outer Dia. 3-42mm
Model Max. O.D. Model Max. O.D.
No. of tubing(inch) No. of tubing(mm)
LY-315 1/4” 1/4 LY-315 6mm 6 Model No.: TC-106S
LY-315 5/16” 5/16 LY-315 8mm 8 For stainless cutting
LY-315 3/8” 3/8 LY-315 10mm 10 Max. tubing Outer Dia. 6-64mm
LY-315 1/2” 1/2 LY-315 12mm 12 Model No.: TC-106P
LY-315 5/8” 5/8 LY-315 16mm 16
LY-315 3/4” 3/4 LY-315 19mm 19 For plastic cutting
LY-315 7/8” 7/8 LY-315 22mm 22 Max. tubing Outer Dia. 6-64mm

Model No.: LY-312 Model No.: LY-312M
Tubing and plumbing kit Tubing and plumbing kit Model No.: TC-107
Flaring, cutting and bending Flaring, cutting and bending For soft cooper, aluminum
For soft cooper, aluminum and brass For soft cooper, aluminum and brass and brass pipe cutting
Max. tubing Outer Max. tubing Outer Max. tubing Outer Dia. 5-45mm
Dia. 3/16” Dia. 4mm
Dia. 1/4” Dia. 6mm
Dia. 5/16” Dia. 8mm
Dia. 7/16” Dia. 10mm
Dia. 3/8” Dia. 12mm
Dia. 1/2” Dia. 15mm Model No.: TC-105C
Dia. 5/8” Dia. 16mm For soft cooper, aluminum
Dia. 3/4” Dia. 18mm and brass pipe cutting
Dia. 1/8” Dia. 22mm Max. tubing Outer Dia. 4-32mm

Model No.: LY-311 Model No.: LY-311M
Tubing and plumbing kit Tubing and plumbing kit Model No.: LY-313-1
Flaring, cutting and bending Flaring, cutting and bending For soft cooper, aluminum
For soft cooper, aluminum and brass For soft cooper, aluminum and brass and brass pipe cutting
Max. tubing Outer Max. tubing Outer Max. tubing Outer
Dia. 3/16” Dia. 4mm Dia. 1/8”-5/8”
Dia. 1/4” Dia. 6mm
Dia. 5/16” Dia. 8mm
Dia. 7/16” Dia. 10mm Model No.: LY-313-2
Dia. 3/8” Dia. 12mm For soft cooper, aluminum
Dia. 1/2” Dia. 15mm and brass pipe cutting
Dia. 16mm Max. tubing Outer
Dia. 1/8” to 1-1/8”

71
