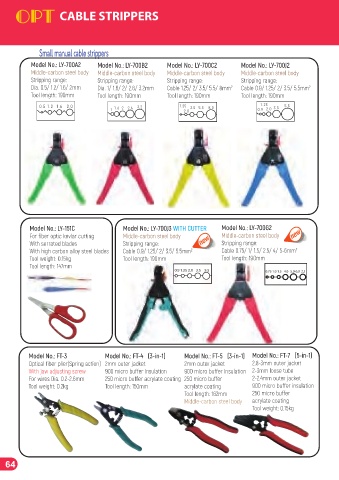

Page 70 - OPT英文手动工具2023

CABLE STRIPPERS

Small manual cable strippers

Model No.: LY-700A2 Model No.: LY-700B2 Model No.: LY-700C2 Model No.: LY-700J2
Middle-carbon steel body Middle-carbon steel body Middle-carbon steel body Middle-carbon steel body
Stripping range: Stripping range: Stripping range: Stripping range:
Dia. 0.5/ 1.2/ 1.6/ 2mm Dia. 1/ 1.6/ 2/ 2.6/ 3.2mm Cable 1.25/ 2/ 3.5/ 5.5/ 8mm 2 Cable 0.9/ 1.25/ 2/ 3.5/ 5.5mm 2
Tool length: 190mm Tool length: 190mm Tool length: 190mm Tool length: 190mm

0.5 1.2 1.6 2.0 1.6 2 2.6 3.2 1.25 3.5 5.5 8.0 1.25 5.5
1 2.0 0.9 2.0 3.5

Model No.: LY-151C Model No.: LY-700J3 WITH CUTTER Model No.: LY-700G2
For fiber optic kevlar cutting Middle-carbon steel body Middle-carbon steel body
With serrated blades Stripping range: Stripping range:
With high carbon alloy steel blades Cable 0.9/ 1.25/ 2/ 3.5/ 5.5mm 2 Cable 0.75/ 1/ 1.5/ 2.5/ 4/ 5-6mm 2
Tool weight: 0.15kg Tool length: 190mm Tool length: 190mm
Tool length: 147mm

Model No.: FT-3 Model No.: FT-4 (3-in-1) Model No.: FT-5 (3-in-1) Model No.: FT-7 (5-in-1)
Optical fiber plier(Spring action) 2mm outer jacket 2mm outer jacket 2.8-3mm outer jacket
With jaw adjusting screw 900 micro buffer insulation 900 micro buffer insulation 2-3mm loose tube
For wires Dia. 0.2-2.6mm 250 micro buffer acrylate coating 250 micro buffer 2-2.4mm outer jacket
Tool weight: 0.2kg Tool length: 150mm acrylate coating 900 micro buffer insulation
Tool length: 162mm 250 micro buffer
Middle-carbon steel body acrylate coating
Tool weight: 0.15kg

64
