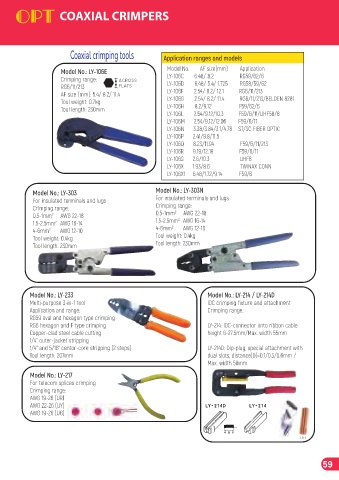

COAXIAL CRIMPERS

Coaxial crimping tools Application ranges and models

Model No.: LY-106E Model No. AF size(mm) Application
Crimping range: across LY-106C 6.48/ 8.2 RG59/62/6
RG6/11/213 flats LY-106D 6.48/ 5.4/ 1.725 RG58/59/62
AF size (mm): 5.4/ 8.2/ 11.4 LY-106F 2.54/ 8.2/ 12.1 RG6/11/213
Tool weight: 0.7kg LY-106G 2.54/ 8.2/ 11.4 RG6/11/213/BELDEN 8281
Tool length: 230mm LY-106H 8.2/9.12 F59/62/6
LY-106L 2.54/9.12/10.3 F59/6/11/UHF58/8
LY-106M 2.54/9.12/12.06 F59/6/11
LY-106N 3.38/3.84/3.1/4.78 ST/SC FIBER OPTIC
LY-106P 2.41/9.8/11.5
LY-106Q 8.23/11.94 F59/6/11/213
LY-106R 9.19/12.19 F59/6/11
LY-106S 2.6/10.3 UHF8
LY-106X 1.93/8.6 TWINAX CONN
LY-106X1 6.48/1.72/9.14 F59/6

Model No.: LY-303 Model No.: LY-303N
For insulated terminals and lugs For insulated terminals and lugs
Crimping range: Crimping range:
0.5-1mm 2 AWG 22-18 0.5-1mm 2 AWG 22-18
2
1.5-2.5mm AWG 16-14 1.5-2.5mm AWG 16-14
2
4-6mm 2 AWG 12-10 4-6mm 2 AWG 12-10
Tool weight: 0.4kg Tool weight: 0.4kg
Tool length: 230mm Tool length: 230mm

Model No.: LY-233 Model No.: LY-214 / LY-214D
Multi-purpose 3-in-1 tool IDC crimping fixture and attachment
Application and range: Crimping range:
RG59 oval and hexagon type crimping
RG6 hexagon and F type crimping LY-214: IDC-connector onto ribbon cable
Copper-clad steel cable cutting height 6-27.5mm/Max. width 55mm
1/4” outer-jacket stripping
1/4” and 5/16” centor-core stripping (2 steps) LY-214D: Dip-plug, special attachment with
Tool length: 207mm dual slots, distance(D)=0.1/0.3/0.6mm /
Max. width 58mm
Model No.: LY-217
For telecom splices crimping
Crimping range:
AWG 19-26 (UR)
AWG 22-26 (UY) LY-214D LY-214
AWG 19-26 (UG)

D
I-D-I
