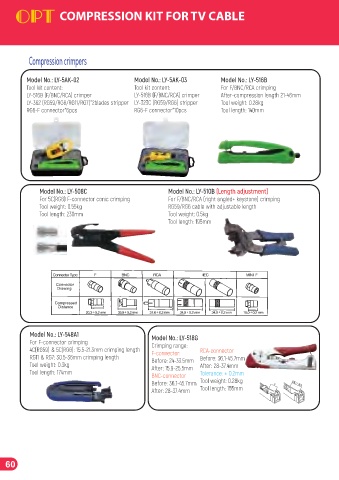

COMPRESSION KIT FOR TV CABLE

Compression crimpers

Model No.: LY-5AK-02 Model No.: LY-5AK-03 Model No.: LY-516B
Tool kit content: Tool kit content: For F/BNC/RCA crimping
LY-516B (F/BNC/RCA) crimper LY-516B (F/BNC/RCA) crimper After-compression length 21-46mm
LY-362 (RG59/RG6/RG11/RG7)*2blades stripper LY-323C (RG59/RG6) stripper Tool weight: 0.28kg
RG6-F connector*6pcs RG6-F connector*10pcs Tool length: 140mm

Model No.: LY-508C Model No.: LY-510B (Length adjustment)
For 5C(RG6) F-connector conic crimping For F/BNC/RCA (right angled+ keystone) crimping
Tool weight: 0.55kg RG59/RG6 cable with adjustable length
Tool length: 230mm Tool weight: 0.5kg
Tool length: 195mm

Model No.: LY-548A1 Model No.: LY-518G
For F-connector crimping Crimping range:
4C(RG59) & 5C(RG6): 15.5-21.3mm crimping length F-connector: RCA-connector
RG11 & RG7: 30.5-36mm crimping length Before: 24-33.5mm Before: 36.1-45.7mm
Tool weight: 0.3kg After: 15.9-25.5mm After: 28-37.4mm
Tool length: 174mm Tolerance: ± 0.2mm
BNC-connector
Before: 36.1-45.7mm Tool weight: 0.28kg
After: 28-37.4mm Tool length: 155mm
