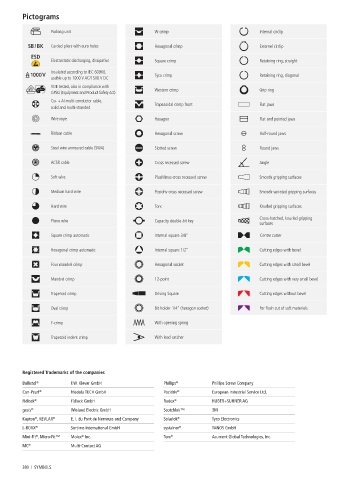

Pictograms

Packing unit W-crimp Internal circlip

SB / BK Carded pliers with euro holes Hexagonal crimp Externel circlip

ESD
Electrostatic discharging, dissipative Square crimp Retaining ring, straight
Insulated according to IEC 60900, Tyco crimp Retaining ring, diagonal
usable up to 1000 V AC/1500 V DC
VDE tested, also in compliance with
GPSG (Equipment and Product Safety Act) Western crimp Grip ring
Cu- + Al-multi-conductor cable, Trapezoidal crimp front Flat jaws
solid and multi-stranded

Wire rope Hexagon Flat and pointed jaws

Ribbon cable Hexagonal screw Half-round jaws

Steel wire armoured cable (SWA) Slotted screw Round jaws

ACSR cable Cross recessed screw Angle

Soft wire PlusMinus cross recessed screw Smooth gripping surfaces

Medium hard wire Pozidriv cross recessed screw Smooth-serrated gripping surfaces

Hard wire Torx Knurled gripping surfaces
Cross-hatched, knurled gripping
Piano wire Capacity double-bit key
surfaces
Square crimp automatic Internal square 3/8” Centre cutter

Hexagonal crimp automatic Internal square 1/2” Cutting edges with bevel

Four mandrel crimp Hexagonal socket Cutting edges with small bevel

Mandrel crimp 12-point Cutting edges with very small bevel

Trapezoid crimp Driving Square Cutting edges without bevel

Oval crimp Bit holder 1/4” (hexagon socket) For flush cut of soft materials

F-crimp With opening spring

Trapezoid indent crimp With lead catcher

Registered Trademarks of the companies

®
Ballistol ® F.W. Klever GmbH Phillips Phillips Screw Company
Con-Pearl friedola TECH GmbH Pozidriv European Industrial Service Ltd.
®
®
Fidlock ® Fidlock GmbH Radox HUBER+SUHNER AG
®
gesis Wieland Electric GmbH Scotchlok™ 3M
®
®
®
Kapton , KEVLAR E. I. du Pont de Nemours and Company Solarlok Tyco Electronics
®
L-BOXX ® Sortimo International GmbH systainer TANOS GmbH
®
Mini-Fit , Micro-Fit™ Molex Inc. Torx Acument Global Technologies, Inc.
®
®
®
®
MC Multi-Contact AG
