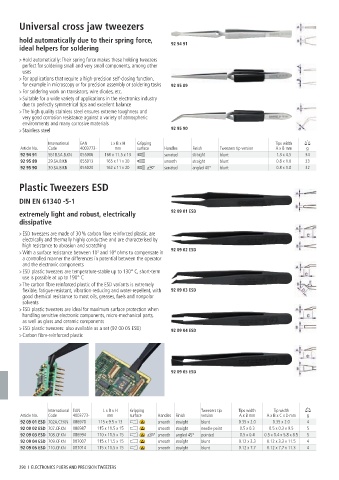

Page 290 - 凯尼派克英文通用样本2024knipex

Universal cross jaw tweezers

hold automatically due to their spring force,
92 94 91
ideal helpers for soldering
> Hold automatically: Their spring force makes these holding tweezers
perfect for soldering small and very small components, among other
uses
> For applications that require a high-precision self-closing function,
for example in microscopy or for precision assembly or soldering tasks 92 95 89
> For soldering work on transistors, wire diodes, etc.
> Suitable for a wide variety of applications in the electronics industry
due to perfectly symmetrical tips and excellent balance
> The high quality stainless steel ensures extreme toughness and
very good corrosion resistance against a variety of atmospheric
environments and many corrosive materials
> Stainless steel 92 95 90

International EAN L x B x H Gripping Tips width
Article No. Code 4003773- mm surface Handles Finish Tweezers tip version A x B mm g
92 94 91 5518.SA.B.KN 055006 160 x 11.5 x 13 serrated straight blunt 1.3 x 4.5 34
92 95 89 29.SA.B.KN 055013 165 x 11 x 20 smooth straight blunt 0.8 x 1.0 33
92 95 90 30.SA.B.KN 055020 162 x 11 x 20 40° serrated angled 40° blunt 0.8 x 1.0 32

Plastic Tweezers ESD

DIN EN 61340 -5-1

extremely light and robust, electrically 92 09 01 ESD
dissipative
> ESD tweezers are made of 30 % carbon fibre reinforced plastic, are
electrically and thermally highly conductive and are characterised by
high resistance to abrasion and scratching
> With a surface resistance between 10 and 10 ohms to compensate in 92 09 02 ESD
2
4
a controlled manner the differences in potential between the operator
and the electronic components
> ESD plastic tweezers are temperature-stable up to 130° C, short-term
use is possible at up to 190° C
> The carbon fibre reinforced plastic of the ESD variants is extremely
flexible, fatigue-resistant, vibration-reducing and water-repellent, with 92 09 03 ESD
good chemical resistance to most oils, greases, fuels and nonpolar
solvents
> ESD plastic tweezers are ideal for maximum surface protection when
handling sensitive electronic components, micro-mechanical parts,
as well as glass and ceramic components
> ESD plastic tweezers: also available as a set (92 00 05 ESD) 92 09 04 ESD
> Carbon fibre-reinforced plastic

92 09 05 ESD

International EAN L x B x H Gripping Tweezers tip Tips width Tip width
Article No. Code 4003773- mm surface Handles Finish version A x B mm A x B x C x D mm g
92 09 01 ESD 702A.CF.KN 086970 115 x 9.5 x 13 smooth straight blunt 0.35 x 2.0 0.35 x 2.0 4
92 09 02 ESD 707.CF.KN 086987 115 x 11.5 x 15 smooth straight needle-point 0.5 x 0.3 0.5 x 0.3 x 9.5 5
92 09 03 ESD 708.CF.KN 086994 110 x 11.5 x 15 45° smooth angled 45° pointed 0.5 x 0.4 0.5 x 0.4 x 5.8 x 8.5 5
92 09 04 ESD 709.CF.KN 087007 115 x 11.5 x 15 smooth straight blunt 0.12 x 3.3 0.12 x 3.3 x 11.5 4
92 09 05 ESD 710.CF.KN 087014 115 x 11.5 x 15 smooth straight blunt 0.12 x 7.7 0.12 x 7.7 x 11.3 4

290 I ELECTRONICS PLIERS AND PRECISION TWEEZERS
