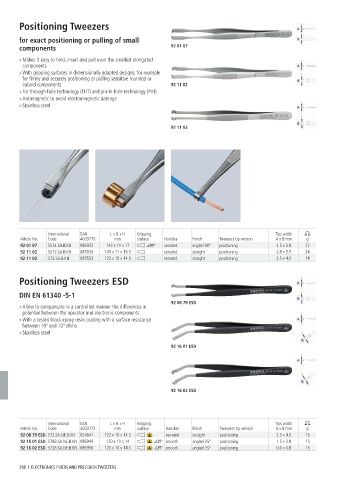

Page 288 - 凯尼派克英文通用样本2024knipex

Positioning Tweezers

for exact positioning or pulling of small
92 01 07
components
> Makes it easy to hold, insert and pull even the smallest elongated
components
> With gripping surfaces in dimensionally adapted designs, for example
for firmly and securely positioning or pulling sensitive rounded or
cuboid components 92 11 02
> For through-hole technology (THT) and pin-in-hole technology (PIH)
> Antimagnetic to avoid electromagnetic damage
> Stainless steel

92 11 03

International EAN L x B x H Gripping Tips width
Article No. Code 4003773- mm surface Handles Finish Tweezers tip version A x B mm g
92 01 07 5574.SA.B.KN 086932 143 x 11 x 17 90° serrated angled 90° positioning 3.5 x 5.8 22
92 11 02 5572.SA.B.KN 085034 145 x 11 x 16.5 serrated straight positioning 2.8 x 5.5 24
92 11 03 572.SA.B.KN 085553 122 x 10 x 14.5 serrated straight positioning 2.5 x 4.0 14

Positioning Tweezers ESD

DIN EN 61340 -5-1
92 08 79 ESD
> Allow to compansate in a controlled manner the differences in
potential between the operator and electronic components
> With a tested black epoxy resin coating with a surface resistance
between 10 and 10 ohms
3
9
> Stainless steel
92 16 01 ESD

92 16 02 ESD

International EAN L x B x H Gripping Tips width
Article No. Code 4003773- mm surface Handles Finish Tweezers tip version A x B mm g
92 08 79 ESD 572.SA.NE.B.KN 054641 122 x 10 x 14.5 serrated straight positioning 2.5 x 4.0 15
92 16 01 ESD 578B.SA.NE.B.KN 086949 120 x 10 x 14 35° smooth angled 35° positioning 1.5 x 3.8 15
92 16 02 ESD 572B.SA.NE.B.KN 086956 120 x 10 x 14.5 35° smooth angled 35° positioning 0.6 x 0.8 15

288 I ELECTRONICS PLIERS AND PRECISION TWEEZERS
