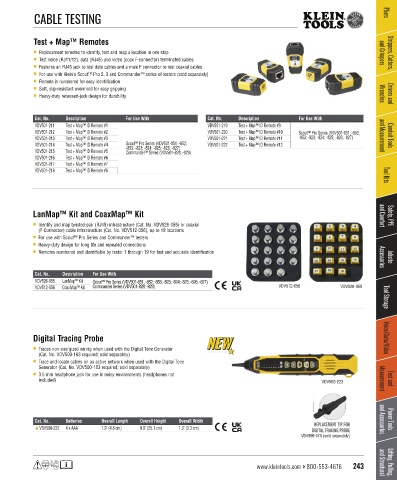

Page 245 - 凯能全英文KleinTools Catalog 167

CABLE TESTING Pliers

Test + Map™ Remotes
• Replacement remotes to identify, test and map a location in one step and Crimpers Strippers, Cutters,
• Test voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables
• Features an RJ45 jack to test data cables and a male F connector to test coaxial cables
• For use with Klein's Scout™ Pro 2, 3 and Commander™ series of testers (sold separately)
• Remote is numbered for easy identification
• Soft, slip-resistant overmold for easy gripping
• Heavy-duty recessed-jack design for durability Wrenches Drivers and

Cat. No. Description For Use With Cat. No. Description For Use With
TM
VDV501-211 Test + Map™ ID Remote #1 VDV501-219 Test + Map ID Remote #9
TM
VDV501-212 Test + Map™ ID Remote #2 VDV501-220 Test + Map ID Remote #10 Scout™ Pro Series (VDV501-851; -852;
TM
VDV501-213 Test + Map™ ID Remote #3 VDV501-221 Test + Map ID Remote #11 -853; -823; -824; -825; -826; -827) and Measurement Conduit Tools
TM
VDV501-214 Test + Map™ ID Remote #4 Scout™ Pro Series (VDV501-851; -852; VDV501-222 Test + Map ID Remote #12
-853; -823; -824; -825; -826; -827)
VDV501-215 Test + Map™ ID Remote #5 Commander™ Series (VDV501-828; -829)
VDV501-216 Test + Map™ ID Remote #6
VDV501-217 Test + Map™ ID Remote #7
VDV501-218 Test + Map™ ID Remote #8 Tool Kits

LanMap™ Kit and CoaxMap™ Kit and Comfort Safety, PPE
• Identify and map twisted-pair (RJ45) infrastructure (Cat. No. VDV526-055) or coaxial
(F-Connector) cable infrastructure (Cat. No. VDV512-056), up to 19 locations
• For use with Scout™ Pro Series and Commander™ testers
• Heavy-duty design for long life and repeated connections
• Remotes numbered and identifiable by tester 1 through 19 for fast and accurate identification Accessories Jobsite

Cat. No. Description For Use With
VDV526-055 LanMap™ Kit Scout™ Pro Series (VDV501-851; -852; -853; -823; -824; -825; -826; -827)
VDV512-056 CoaxMap™ Kit Commander Series (VDV501-828; -829) VDV512-056 VDV526-055 Tool Storage

Digital Tracing Probe Voice/Data/Video
• Traces non-energized wiring when used with the Digital Tone Generator
(Cat. No. VDV500-163 required; sold separately)
• Trace and locate cables on an active network when used with the Digital Tone
Generator (Cat. No. VDV500-163 required; sold separately)
• 3.5 mm headphone jack for use in noisy environments (headphones not
included) VDV500-223 Measurement Test and

Cat. No. Batteries Overall Length Overall Height Overall Width and Accessories Power Tools
REPLACEMENT TIP FOR
VDV500-223 4 x AAA 1.9" (4.8 cm) 9.9" (25.1 cm) 1.3" (3.3 cm)
DIGITAL TRACING PROBE
VDV999-070 (sold separately)

www.kleintools.com > 800-553-4676 243 and Structural Lifting, Pulling,
