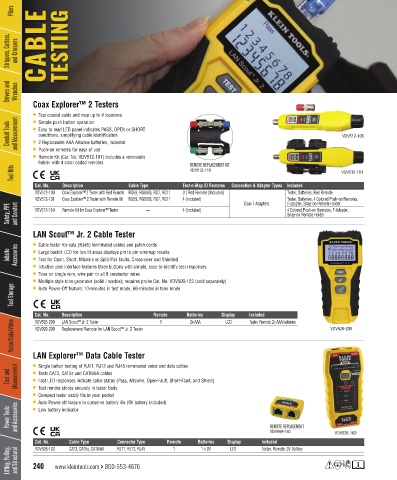

Page 242 - 凯能全英文KleinTools Catalog 167

Pliers

Strippers, Cutters, and Crimpers CABLE TESTING

Drivers and Wrenches

Coax Explorer™ 2 Testers
• Test coaxial cable and map up to 4 locations
•
Simple push button operation
Conduit Tools and Measurement • Easy to read LED panel indicates PASS, OPEN or SHORT VDV512-100
conditions, simplifying cable identification
•
2 Replaceable AAA Alkaline batteries, included
•
• Push-on remotes for ease of use
Remote Kit (Cat. No. VDV512-101) includes a removable
holder with 4 color coded remotes REMOTE REPLACEMENT KIT
Tool Kits VDV512-110 VDV512-101

Cat. No. Description Cable Type Test-n-Map ID Remotes Connection & Adapter Types Included
VDV512-100 Coax Explorer™ 2 Tester with Red Remote RG59, RG6/6Q, RG7, RG11 (1) Red Remote (Included) Tester, Batteries, Red Remote
VDV512-101 Coax Explorer™ 2 Tester with Remote Kit RG59, RG6/6Q, RG7, RG11 4 (Included) Coax F Adapters Tester, Batteries, 4 Colored Push-on Remotes,
F-adapter, Snap-on Remote Holder
Safety, PPE and Comfort VDV512-110 Remote Kit for Coax Explorer™ Tester — 4 (Included) 4 Colored Push-on Remotes, F-Adapter,
Snap-on Remote Holder

LAN Scout™ Jr. 2 Cable Tester

Jobsite Accessories • Cable tester for data (RJ45) terminated cables and patch cords
•
Large backlit LCD for low lit areas displays pin to pin wiremap results
•
Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shielded
• Intuitive user interface features three buttons with simple, easy-to-identify test responses
• Tone on single wire, wire pair or all 8 conductor wires
• Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
Tool Storage • Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode

Cat. No. Description Remote Batteries Display Included
Voice/Data/Video VDV999-200 Replacement Remote for LAN Scout™ Jr. 2 Tester VDV526-200
2x AAA
1
LAN Scout™ Jr. 2 Tester
VDV526-200
Tester, Remote, 2x AAA batteries
LCD
LAN Explorer™ Data Cable Tester

Test and Measurement • Single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
•
Tests CAT3, CAT5e and CAT6/6A cables
•
Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
•
• Test remote stores securely in tester body
Compact tester easily fits in your pocket
•
Auto Power-off feature to conserve battery life (9V battery included)
Power Tools and Accessories • Low battery indicator
REMOTE REPLACEMENT
VDV999-150
VDV526-100
Cat. No. Cable Type RJ11, RJ12, RJ45 Remote Batteries Display Included
Connector Type
Lifting, Pulling, and Structural 240 www.kleintools.com > 800-553-4676
Tester, Remote, 9V Battery
1
CAT3, CAT5e, CAT6/6A
1 x 9V
LED
VDV526-100
