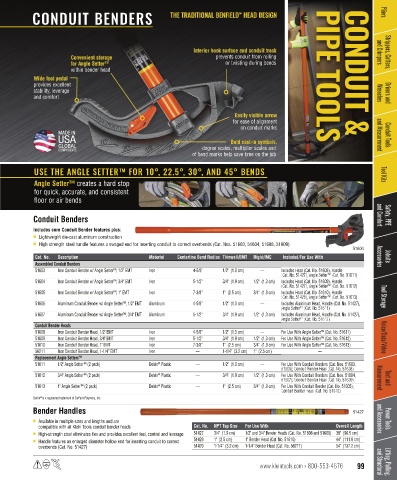

Page 101 - 凯能全英文KleinTools Catalog 167

™
CONDUIT BENDERS THE TRADITIONAL BENFIELD HEAD DESIGN Pliers

Interior hook surface and conduit track and Crimpers Strippers, Cutters,
prevents conduit from rolling
Convenient storage prevents conduit from rolling
for Angle Setter™ or twisting during bends
within bender head
within bender head
Wide foot pedal PIPE TOOLS CONDUIT &
provides excellent
provides excellent
, leverage
stability
stability, leverage Wrenches Drivers and
and comfort
and comfort
Easily visible arrow
for ease of alignment
for ease of alignment
on conduit marks
on conduit marks
Bold cast-in symbols,
Bold cast-in symbols, and Measurement Conduit Tools
degree scales, multiplier scales and
degree scales, multiplier scales and
of bend marks help save time on the job
of bend marks help save time on the job
USE THE ANGLE SETTER™ FOR 10°, 22.5°, 30°, AND 45° BENDS Tool Kits
Angle Setter™ creates a hard stop
Angle Setter™
for quick, accurate, and consistent
for quick, accurate, and consistent
floor or air bends
floor or air bends
Conduit Benders and Comfort Safety, PPE
Includes core Conduit Bender features plus:
• Lightweight die-cast aluminum construction
• High strength steel handle features a swaged end for inserting conduit to correct overbends (Cat. Nos. 51603, 51604, 51608, 51609)
51604
Cat. No. Description Material Centerline Bend Radius Thinwall/EMT Rigid/IMC Included/For Use With Accessories Jobsite
Assembled Conduit Benders
)
)
(
51603 Iron Conduit Bender w/ Angle Setter™, 1/2" EMT Iron 4-5/8" 1/2" (1.3 cm) — Includes Head (Cat. No. 51608), Handle
(
(Cat. No. 51427), Angle Setter™ (Cat. No. 51611)
)
)
(
(
51604 Iron Conduit Bender w/ Angle Setter™, 3/4" EMT Iron 5-1/2" 3/4" (1.9 cm) 1/2" (1.3 cm) Includes Head (Cat. No. 51609), Handle
(Cat. No. 51427), Angle Setter™ (Cat. No. 51612)
(
)
51605 Iron Conduit Bender w/ Angle Setter™, 1" EMT Iron 7-3/8" 1" (2.5 cm) 3/4" (1.9 cm) Includes Head (Cat. No. 51610), Handle
(
)
(Cat. No. 51428), Angle Setter™ (Cat. No. 51613) Tool Storage
51606 Aluminum Conduit Bender w/ Angle Setter™, 1/2" EMT Aluminum 4-5/8" 1/2" (1.3 cm) — Includes Aluminum Head, Handle (Cat. No. 51427),
Angle Setter™ (Cat. No. 51611)
51607 Aluminum Conduit Bender w/ Angle Setter™, 3/4" EMT Aluminum 5-1/2" 3/4" (1.9 cm) 1/2" (1.3 cm) Includes Aluminum Head, Handle (Cat. No. 51427),
Angle Setter™ (Cat. No. 51612)
Conduit Bender Heads
51608 Iron Conduit Bender Head, 1/2" EMT Iron 4-5/8" 1/2" (1.3 cm) — For Use With Angle Setter™ (Cat. No. 51611)
51609 Iron Conduit Bender Head, 3/4" EMT Iron 5-1/2" 3/4" (1.9 cm) 1/2" (1.3 cm) For Use With Angle Setter™ (Cat. No. 51612) Voice/Data/Video
51610 Iron Conduit Bender Head, 1" EMT Iron 7-3/8" 1" (2.5 cm) 3/4" (1.9 cm) For Use With Angle Setter™ (Cat. No. 51613)
56211 Iron Conduit Bender Head, 1-1/4” EMT Iron — 1-1/4" (3.2 cm) 1" (2.5 cm) —
Replacement Angle Setters™
)
)
51611 1/2" Angle Setter™ (2 pack) Delrin Plastic — 1/2" (1.3 cm) — For Use With Conduit Benders )Cat. Nos. 51603,
®
51606); Conduit Bender Head (Cat. No. 51608)
51612 3/4" Angle Setter™ (2 pack) Delrin Plastic — 3/4" (1.9 cm) 1/2" (1.3 cm) For Use With Conduit Benders (Cat. Nos. 51604,
®
(
(
51607); Conduit Bender Head (Cat. No. 51609) Measurement Test and
(
51613 1" Angle Setter™ (2 pack) Delrin Plastic — 1" (2.5 cm) 3/4" (1.9 cm) For Use With Conduit Bender (Cat. No. 51605);
®
(
Conduit Bender Head (Cat. No. 51610)
Delrin ® is a registered trademark of DuPont Polymers, Inc.
Bender Handles 51427
• Available in multiple sizes and lengths and are and Accessories Power Tools
compatible with all Klein Tools conduit bender heads Cat. No. NPT Tap Size For Use With Overall Length
• High-strength steel eliminates flex and provides excellent feel, control and leverage 51427 3/4" (1.9 cm) 1/2" and 3/4" Bender Heads (Cat. No. 51608 and 51609) 38" (96.5 cm)
• Handle features an enlarged diameter hollow end for inserting conduit to correct 51428 1" (2.5 cm) 1" Bender Head (Cat. No. 51610) 44" (111.8 cm)
overbends (Cat. No. 51427) 51429 1-1/4" (3.2 cm) 1-1/4" Bender Head (Cat. No. 56211) 54" (137.2 cm)
www.kleintools.com > 800-553-4676 99 and Structural Lifting, Pulling,
