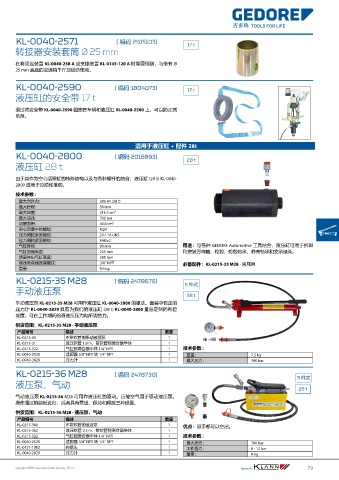

Kapitel_5-7_EN.fm Seite 79  Montag, 7. Juni 2021 8:09 08





       KL-0040-2571                     (Code 2915103)             17 t                KL-0040-2571
                                          ( 编码 2915103)
       Adaptor Sleeve, Ø 25mm
      转接器安装套筒 Ø 25 mm
      在将固定装置 KL-0040-258 A 或支撑装置 KL-0145-120 A 时需要用到,与带有
       This adaptor is needed to use the retaining device KL-0040-258 A or the supporting Ø
       device for control arm KL-0145-120 A in conjunction with a transmission jack having
      25 mm 底座的变速箱千斤顶结合使用。
       a plunger with Ø of 25mm.
       KL-0040-2590                     (Code 1804073)             17 t                KL-0040-2590
                                         ( 编码 1804073)
      液压缸的安全带 17 t
       Safety Belt for Hydraulic Cylinder (17t)
       Thanks to the KL-0040-2590 safety belt which is fastened to the vehicle and to the
      通过将安全带 KL-0040-2590 固定在车辆和液压缸 KL-0040-2500 上,可以防止其
       KL-0040-2500 hydraulic cylinder, the latter can be secured against falling.
       坠落。



                                           Hydraulic Cylinder 28t + Accessories
                                                 适用于液压缸 + 配件 28t
       KL-0040-2800                     (Code 2016893)             28 t                KL-0040-2800
                                         ( 编码 2016893)
      液压缸 28 t
       Hydraulic Cylinder, 28t
       Thanks to its special design as a hollow piston cylinder, the KL-0040-2800 hydraulic
      由于其作为空心活塞缸的特殊结构以及与各种螺杆的结合,液压缸 (28 t) KL-0040-
       cylinder (28t) can be  used to perform  pulling as well as pushing operations,  in
      2800 适用于拉动和推动。
       conjunction with the corresponding spindles available as accessories.
      技术参数 :
       Technical Data:
        最大允许力:
                                    285 kN (28 t)
       Maximum admissible force:    285kN (28t)
                                    50 mm
        最大行程:
       Maximum stroke:              50mm
        最大油量:
                                    216.3 cm³
       Maximum volume of oil:       216.3cm³
        最大油压:
                                    700 bar
       Maximum oil pressure:        700 bar
        活塞面积:
                                    40.6 cm²
       Piston area:                 40.6cm²
        空心活塞中的螺纹:
       Thread in tubular piston:    M24
                                    M24
       Retaining thread (pushing side):  2¾“-16 UNS               Range of Applications:
        压力侧的紧固螺纹:
                                    2¾"-16 UNS
                                    M42x2
        拉力侧的紧固螺纹:
       Retaining thread (pulling side):  M42x2                    In  conjunction  with  various  GEDORE  Automotive  tools,  the
       Cylinder outer diameter:     99mm                         用途:与各种 GEDORE Automotive 工具结合,液压缸可用于拆卸
        气缸外径:
                                    99 mm
                                                                  hydraulic cylinder KL-0040-2800 can be used for the removal and
       Cylinder overall length (piston retracted):  235mm        和安装万向轴、轮毂、轮毂轴承、静音轴承和支承接头。
        气缸回缩高度:
                                    235 mm
                                                                  installation of drive shafts, wheel hubs, wheel bearings, silentblocs
       Cylinder overall length (piston extended):  285mm          and suspension ball joints.
        活塞伸出气缸高度:
                                    285 mm
       Hydraulic fluid connection thread:  3/8“ NPT              必备配件:KL-0215-35 M28 - 液压泵
        液压离合器连接螺纹:
                                    3/8" NPT
       Weight:                      9.6kg                         Required Accessories: KL-0215-35 M28 Hydraulic Pump
        重量:
                                    9.6 kg
       KL-0215-35 M28                  (Code 2478676)             5 件式                 KL-0215-35 M28
                                         ( 编码 2478676)
                                                                  5 pcs.
      手动液压泵
       Hydraulic Hand Pump
                                                                   28 t
       The KL-0215-35 M28 hydraulic hand pump is designed to be used as a drive for the hydr.
      手动液压泵 KL-0215-35 M28 可用作液压缸 KL-0040-2800 的驱动。套装中包含的
       cyl. KL-0040-2800. While operating the pump, the hydraulic pressure and necessary force
      压力计 KL-0040-2829 具有为我们的液压缸 (28 t) KL-0040-2800 量身定制的吨位
       can  be  monitored  at  pressure  gauge  (supplied  with  the  tool  set).  The  pressure  gauge
       刻度,可在工作期间检查液压压力和所需的力。
       features an additional tonne scale which is specifically adapted to our hydr. cyl. (28t).
       供货范围:KL-0215-35 M28 - 手动液压泵
       Scope of Delivery: KL-0215-35 M28 Hydraulic Hand Pump
       产品编号        Description                             Qty
                        描述
                                                           数量
       Part No.
                        不带软管的手动液压泵
       KL-0215-33  Hydraulic Hand Pump (without hose)       1 1
       KL-0215-33
       KL-0215-31  Hydraulic Hose, 1.8m, with Hose-Side Connector  1 1
                        液压软管 1.8 m,带软管侧离合器半体
       KL-0215-31
                                                                  Technical Data:
                        气缸侧离合器半体 1/4" NPT
       KL-0215-322  Cylinder-Side Connector, 1/4" NPT       1 1  技术参数 :
       KL-0215-322
                        适配器 3/8" NPT 转
       KL-0040-2520  Adaptor, 3/8" NPT to 1/4" NPT1/4" NPT  1 1    Weight:               7.5kg
                                                                   重量:
       KL-0040-2520
                                                                                         7.5 kg
                        压力计
       KL-0040-2829
       KL-0040-2829  Pressure Gauge                         1 1    Max. Pressure:        700 bar
                                                                   最大压力:
                                                                                         700 bar
       KL-0215-36 M28                  (Code 2478730)                                  KL-0215-36 M28    5 件式
                                         ( 编码 2478730)
                                                                                                          5 pcs.
      液压泵,气动
       Hydraulic Pump (Pneumatic)
                                                                                                          28 t
       The pneumatic hydraulic pump KL-0215-36 M28 is designed to be used as a drive for
      气动液压泵 KL-0215-36 M28 可用作液压缸的驱动。压缩空气用于驱动液压泵。
       hydraulic cylinder. Compressed air is used to power the hydraulic pump. The pump is
      操作通过脚踏板进行,后者具有泵送、保持和释放三种设置。
       operated by a foot pedal with 3 positions - for pumping, holding and releasing.
      供货范围:KL-0215-36 M28 - 液压泵,气动
       Scope or Delivery: KL-0215-36 M28 Hydraulic Pump (Pneumatic)
                        描述
                                                           数量
       产品编号        Description                             Qty
       Part No.
                        不带软管的液压泵
       KL-0215-360  Hydraulic Pump (without Hose)           1 1  优点:双手都可以空出。
       KL-0215-360
                                                                  Advantage: Both hands free to work.
                        液压软管 2.5 m,带软管侧离合器半体
       KL-0215-362  Hydraulic Hose, 2.5m, with Hose-Side Coupling  1 1
       KL-0215-362
                                                                  Technical Data:
                        气缸侧离合器半体 1/4" NPT
       KL-0215-322  Cylinder-Side Coupling, 1/4" NPT        1 1  技术参数 :
       KL-0215-322
       KL-0040-2520  Adaptor, 3/8" NPT to 1/4" NPT  1/4" NPT  1 1  Maximum Pressure:     700 bar
                        适配器 3/8" NPT 转
                                                                   最大压力:
       KL-0040-2520
                                                                                         700 bar
       KL-0127-1002  Fitting  内接头                           1 1   Operating Pressure:    8-12 bar
       KL-0127-1002
                                                                                         8 - 12 bar
                                                                   工作压力:
                        压力计
       KL-0040-2829  Pressure Gauge                         1 1   Weight:                8kg
                                                                   重量:
       KL-0040-2829
                                                                                         8 kg
       Copyright GEDORE Automotive GmbH, Germany, EN / 5.1                            formerly               79
