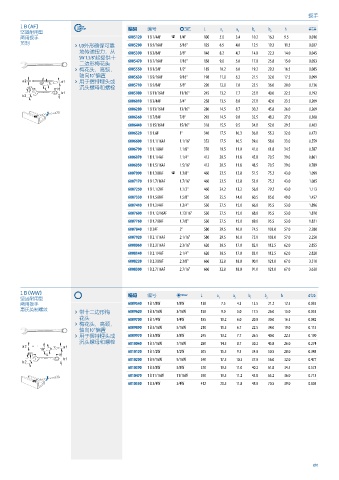

Page 91 - 吉多瑞2023版通用工具

扳手
扳手 编码 编号 L a a b b h
1 B (AF)
坚固耐用型 " 1 2 1 2 0
两用扳手 6005120 1 B 1/4AF n 1/4" 100 5.0 3.4 10.2 16.2 9.5 0.016
英制
› UD外形确保可靠 6005200 1 B 5/16AF 5/16" 125 6.5 4.0 12.5 19.2 11.5 0.027
地传递扭力，从 6005390 1 B 3/8AF 3/8" 148 8.2 4.7 14.8 22.2 14.0 0.045
SW 1.3/8"起提供十
二边形梅花头 6005470 1 B 7/16AF 7/16" 158 9.0 5.0 17.0 25.8 15.0 0.053
› 梅花头，高颈， 6005550 1 B 1/2AF 1/2" 185 10.2 6.0 19.2 29.2 16.5 0.085
轴向10°偏置 6005630 1 B 9/16AF 9/16" 198 11.0 6.3 21.5 32.0 17.5 0.099
› 用于握持埋头或
沉头螺母和螺栓 6005710 1 B 5/8AF 5/8" 220 12.0 7.0 23.5 36.0 20.0 0.136
6005980 1 B 11/16AF 11/16" 245 13.2 7.7 25.8 40.0 22.5 0.192
6006010 1 B 3/4AF 3/4" 258 13.5 8.0 27.8 42.0 23.5 0.209
6006280 1 B 13/16AF 13/16" 280 14.5 8.7 30.2 45.8 26.0 0.269
6006360 1 B 7/8AF 7/8" 292 14.5 9.0 32.5 48.2 27.0 0.308
6006440 1 B 15/16AF 15/16" 318 15.5 9.5 34.8 52.0 29.5 0.403
6006520 1 B 1.AF 1" 340 17.5 10.3 36.8 55.2 32.0 0.473
6006600 1 B 1.1/16AF 1.1/16" 352 17.5 10.5 39.0 58.0 33.0 0.559
6006790 1 B 1.1/8AF 1.1/8" 370 19.5 11.0 41.0 61.8 34.5 0.587
6006870 1 B 1.1/4AF 1.1/4" 412 20.5 11.8 45.8 70.5 39.0 0.861
6006950 1 B 1.5/16AF 1.5/16" 412 20.5 11.8 48.5 70.5 39.0 0.789
6007090 1 B 1.3/8AF n 1.3/8" 460 23.5 12.8 51.5 75.2 43.0 1.099
6007170 1 B 1.7/16AF 1.7/16" 460 23.5 12.8 53.0 75.2 43.0 1.085
6007250 1 B 1.1/2AF 1.1/2" 460 24.2 13.2 56.0 79.2 43.0 1.113
6007330 1 B 1.5/8AF 1.5/8" 520 25.5 14.0 60.5 85.0 49.0 1.457
6007410 1 B 1.3/4AF 1.3/4" 550 27.5 15.0 66.0 95.5 53.0 1.896
6007680 1 B 1.13/16AF 1.13/16" 550 27.5 15.0 68.0 95.5 53.0 1.870
6007760 1 B 1.7/8AF 1.7/8" 550 27.5 15.0 69.0 95.5 53.0 1.821
6007840 1 B 2AF 2" 580 29.5 16.0 74.5 103.0 57.0 2.280
6007920 1 B 2.1/16AF 2.1/16" 580 29.5 16.0 75.0 103.0 57.0 2.250
6008060 1 B 2.3/16AF 2.3/16" 620 30.5 17.0 82.0 112.5 62.0 2.855
6008140 1 B 2.1/4AF 2.1/4" 620 30.5 17.0 83.0 112.5 62.0 2.820
6008220 1 B 2.3/8AF 2.3/8" 660 32.0 18.0 90.0 121.0 67.0 3.510
6008300 1 B 2.7/16AF 2.7/16" 660 32.0 18.0 91.0 121.0 67.0 3.630

扳手 编码 编号
1 B (WW)
坚固耐用型 # L a 1 a 2 b 1 b 2 h 0
两用扳手 6009540 1 B 1/8W 1/8W 138 7.5 4.3 13.5 21.2 12.5 0.035
惠氏英制螺纹 › 带十二边形梅 6009620 1 B 3/16W 3/16W 158 9.0 5.0 17.5 26.0 15.0 0.053
花头 6009700 1 B 1/4W 1/4W 185 10.2 6.0 20.0 30.0 16.5 0.082
› 梅花头，高颈，
轴向10°偏置 6009890 1 B 5/16W 5/16W 210 11.5 6.7 22.5 34.0 19.0 0.115
› 用于握持埋头或 6009970 1 B 3/8W 3/8W 245 13.2 7.7 26.5 40.0 22.5 0.190
沉头螺母和螺栓 6010040 1 B 7/16W 7/16W 280 14.5 8.7 30.2 45.8 26.0 0.274
6010120 1 B 1/2W 1/2W 305 15.5 9.3 34.0 50.5 28.0 0.343
6010200 1 B 9/16W 9/16W 340 17.5 10.3 37.0 56.0 32.0 0.477
6010390 1 B 5/8W 5/8W 370 19.5 11.0 40.2 61.8 34.5 0.573
6010470 1 B 11/16W 11/16W 390 19.5 11.2 43.8 65.2 36.0 0.713
6010550 1 B 3/4W 3/4W 412 20.5 11.8 48.0 70.5 39.0 0.803

091
