General workshop equipment General workshop equipment

Work benches i/ Tool cabinets Work benches i/ Tool cabinets

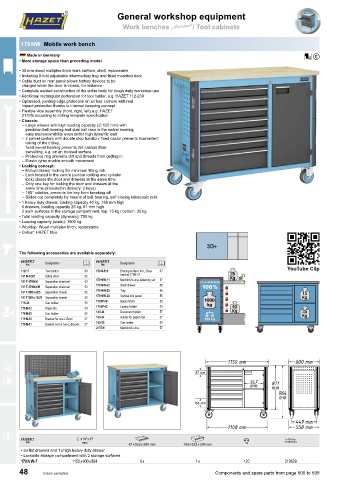

179 NW Mobile work bench

Made in Germany S/
• More storage space than preceding model
• 30 mm wood multiplex birch work surface, oiled, replaceable
• Including 9-fold adjustable intermediary tray and fixed mounted door
• Cable duct on rear panel allows battery devices to be
charged when the door is closed, for instance
• Complete welded construction of the entire body for tough daily workshop use
• Additional rectangular perforation for tool holder, e.g. HAZET 112-230
• Optimised, yielding edge protection on all four corners with real
impact protection thanks to internal damping concept
• Flexible vice assembly (front, right, left) e.g. HAZET
2175N according to drilling template specification
• Chassis:
– Large wheels with high loading capacity (x 125 mm) with
precision ball-bearing and dual ball race in the swivel bearing,
easy manoeuvrability even under high dynamic load
– 2 swivel castors with double stop function: fixed castor prevents inadvertent
rolling of the trolley,
fixed swivel bearing prevents the castors from
swivelling, e.g. on an inclined surface
– Protective ring prevents dirt and threads from getting in
– Elastic tyres enable smooth movement
• Locking concept:
– Mutual drawer locking for minimum tilting risk
– Lock located in the centre (central locking and cylinder
lock) closes the door and drawers at the same time
– Only one key for locking the door and drawers at the
same time (Included in delivery: 2 keys)
– 180° rotation, prevents the key from breaking off
– Slides out completely by means of ball-bearing, self-closing telescopic rails
• 1 heavy duty drawer, loading capacity 40 kg, 166 mm high
6 drawers, loading capacity 25 kg, 81 mm high
2 work surfaces in the storage compartment, top: 15 kg / bottom: 35 kg
• Total loading capacity (dynamic): 750 kg
• Loading capacity (static): 1000 kg
• Worktop: Wood multiplex birch, replaceable
• Colour: HAZET blue

The following accessories are available separately:
1 Designation 1 Designation

112/11 Tool holder 50 179 N-510 Bracing surface for L-Boxx 57 YouTube Clip
161 N-3 D/2 Cable drum 52 bracket 179N-51
161 T-179 N/4 Separation sheet set 53 179 N W-11 Machinist‘s vice fastening set 57
161 T-179 N/4 H Separation sheet set 53 179 N W-22 Shelf drawer 56
161 T-395 x 60/5 Separation sheets 52 179 N W-23 Tray 56
161 T-395 x 120/5 Separation sheets 52 179 N W-26 Vertical tool panel 56
179-35 Can holder 55 179 W-40 Basic fixture 55
179 N-33 Paper bin 54 179 W-42 Laptop holder 55
179 N-35 Can holder 55 180-24 Document holder 57
179 N-50 Bracket for one L-Boxx 57 180-34 Holder for paper reel 57
179 N-51 Bracket set for two L-Boxxes 57 180-35 Can holder 55
2175 N Machinist‘s vice 57

1 L x W x H 81 x 522 x 398 mm 166 x 522 x 398 mm 6 4
À
Á
mm
• 6 x flat drawers and 1 x high heavy-duty drawer
• Lockable storage compartment with 2 storage surfaces
179 N W-7 1150 x 600 x 964 6 x 1 x 120 219629
48 Errors excepted Components and spare parts from page 500 to 509
