General workshop equipment

Work benches i/ Tool cabinets

Work benches i/ Tool cabinets

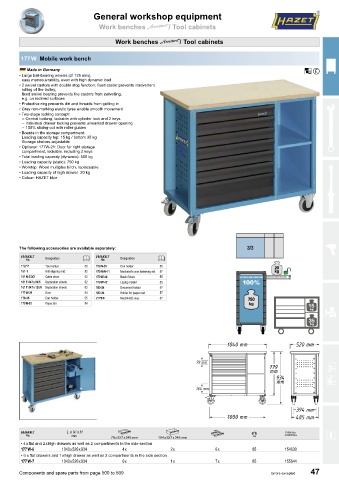

177 W Mobile work bench

Made in Germany S/
• Large ball-bearing wheels (x 125 mm),
easy manoeuvrability, even with high dynamic load
• 2 swivel castors with double stop function: fixed castor prevents inadvertent
rolling of the trolley,
fixed swivel bearing prevents the castors from swivelling,
e.g. on inclined surfaces
• Protective ring prevents dirt and threads from getting in
• Grey non-marking elastic tyres enable smooth movement
• Two-stage locking concept:
– Central locking, lockable with cylinder lock and 2 keys
– Individual drawer locking prevents unwanted drawer opening
– 100% sliding-out with roller guides
• Boards in the storage compartment:
Loading capacity top: 15 kg / bottom 35 kg
Storage shelves adjustable
• Optional: 177W-21: Door for right storage
compartment, lockable, including 2 keys
• Total loading capacity (dynamic): 500 kg
• Loading capacity (static): 750 kg
• Worktop: Wood multiplex birch, replaceable
• Loading capacity of high drawer: 20 kg
• Colour: HAZET blue

The following accessories are available separately:
1 Designation 1 Designation

112/11 Tool holder 50 179 N-35 Can holder 55
161-1 Anti-slipping mat 52 179 N W-11 Machinist‘s vice fastening set 57
161 N-3 D/2 Cable drum 52 179 W-40 Basic fixture 55
161 T-347 x 60/5 Separation sheets 52 179 W-42 Laptop holder 55
161 T-347 x 120/5 Separation sheets 52 180-24 Document holder 57
177 W-21 Door 54 180-34 Holder for paper reel 57
179-35 Can holder 55 2175 N Machinist‘s vice 57
179 N-33 Paper bin 54

1 L x W x H 79 x 527 x 348 mm 164 x 527 x 348 mm  6 4
Á
À
mm
• 4 x flat and 2 x high drawers as well as 2 compartments in the side section
177 W-6 1040 x 520 x 934 4 x 2 x 6 x 85 154630
• 6 x flat drawers and 1 x high drawer as well as 2 compartments in the side section
177 W-7 1040 x 520 x 934 6 x 1 x 7 x 85 155644
Components and spare parts from page 500 to 509 Errors excepted 47
