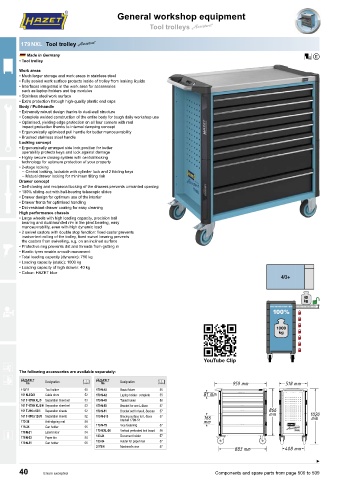

Page 42 - HAZET哈蔡特2024英文样本

General workshop equipment General workshop equipment

Tool trolleys i Tool trolleys i

179 NXL Tool trolley i

Made in Germany S/
• Tool trolley
Work areas
• Much larger storage and work areas in stainless steel
• Fully sealed work surface protects inside of trolley from leaking liquids
• Interfaces integrated in the work area for accessories
such as laptop holders and top modules
• Stainless steel work surface
• Extra protection through high-quality plastic end caps
Body / Pull-handle
• Extremely robust design thanks to dual-wall structure
• Complete welded construction of the entire body for tough daily workshop use
• Optimised, yielding edge protection on all four corners with real
impact protection thanks to internal damping concept
• Ergonomically optimised pull handle for better manoeuvrability
• Brushed stainless steel handle
Locking concept
• Ergonomically arranged side lock position for better
operability protects keys and lock against damage
• Highly secure closing system with central locking
technology for optimum protection of your property
• 2-stage locking
– Central locking, lockable with cylinder lock and 2 folding keys
– Mutual drawer locking for minimum tilting risk
Drawer concept
• Self-closing and reciprocal locking of the drawers prevents unwanted opening
• 100% sliding-out with ball-bearing telescopic slides
• Drawer design for optimum use of the interior
• Drawer fronts for optimised handling
• Dirt-resistant drawer coating for easy cleaning
High performance chassis
• Large wheels with high loading capacity, precision ball
bearing and dual rounded rim in the pivot bearing, easy
manoeuvrability, even with high dynamic load
• 2 swivel castors with double stop function: fixed castor prevents
inadvertent rolling of the trolley, fixed swivel bearing prevents
the castors from swivelling, e.g. on an inclined surface
• Protective ring prevents dirt and threads from getting in
• Elastic tyres enable smooth movement
• Total loading capacity (dynamic): 750 kg
• Loading capacity (static): 1000 kg
• Loading capacity of high drawer: 40 kg
• Colour: HAZET blue

YouTube Clip

The following accessories are available separately:
1 Designation 1 Designation

112/11 Tool holder 50 179 N-40 Basic fixture 55
161 N-3 D/2 Cable drum 52 179 N-42 Laptop holder ∙ complete 55
161 T-179 N XL/5 Separation sheet set 53 179 N-45 Tablet holder 56
161 T-179 N XL/5 H Separation sheet set 53 179 N-50 Bracket for one L-Boxx 57
161 T-395 x 60/5 Separation sheets 52 179 N-51 Bracket set for two L-Boxxes 57
161 T-395 x 120/5 Separation sheets 52 179 N-510 Bracing surface for L-Boxx 57
173-38 Anti-slipping mat 54 bracket 179N-51
179-35 Can holder 55 179 N-75 Vice fastening 57
179 N-21 Lateral door 54 179 N XL-26 Vertical perforated tool board 56
179 N-33 Paper bin 54 180-24 Document holder 57
179 N-35 Can holder 55 180-34 Holder for paper reel 57
2175 N Machinist‘s vice 57
B
40 Errors excepted Components and spare parts from page 500 to 509
