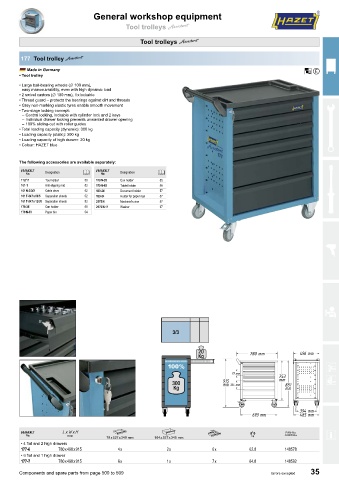

Page 37 - HAZET哈蔡特2024英文样本

General workshop equipment

Tool trolleys i

Tool trolleys i

177 Tool trolley i

Made in Germany S/
• Tool trolley
• Large ball-bearing wheels (x 100 mm),
easy manoeuvrability, even with high dynamic load
• 2 swivel castors (x 100 mm), 1 x lockable
• Thread guard – protects the bearings against dirt and threads
• Grey non-marking elastic tyres enable smooth movement
• Two-stage locking concept:
– Central locking, lockable with cylinder lock and 2 keys
– Individual drawer locking prevents unwanted drawer opening
– 100% sliding-out with roller guides
• Total loading capacity (dynamic): 300 kg
• Loading capacity (static): 300 kg
• Loading capacity of high drawer: 20 kg
• Colour: HAZET blue

The following accessories are available separately:
1 Designation 1 Designation

112/11 Tool holder 50 179 N-35 Can holder 55
161-1 Anti-slipping mat 52 179 N-45 Tablet holder 56
161 N-3 D/2 Cable drum 52 180-24 Document holder 57
161 T-347 x 60/5 Separation sheets 52 180-34 Holder for paper reel 57
161 T-347 x 120/5 Separation sheets 52 2175 N Machinist‘s vice 57
179-35 Can holder 55 2175 N-11 Washer 57
179 N-33 Paper bin 54

1 L x W x H 79 x 527 x 348 mm 164 x 527 x 348 mm  6 4
À
Á
mm
• 4 flat and 2 high drawers
177-6 780 x 498 x 915 4 x 2 x 6 x 62.8 148578
• 6 flat and 1 high drawer
177-7 780 x 498 x 915 6 x 1 x 7 x 64.8 148592
Components and spare parts from page 500 to 509 Errors excepted 35
