General workshop equipment General workshop equipment

Tool trolleys i Tool trolleys i

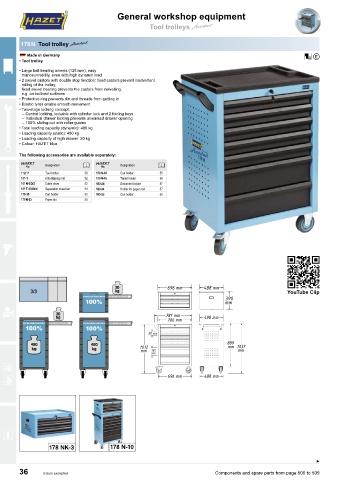

178 N Tool trolley i

Made in Germany S/
• Tool trolley
• Large ball-bearing wheels (125 mm), easy
manoeuvrability, even with high dynamic load
• 2 swivel castors with double stop function: fixed castors prevent inadvertent
rolling of the trolley,
fixed swivel bearing prevents the castors from swivelling,
e.g. on inclined surfaces
• Protective ring prevents dirt and threads from getting in
• Elastic tyres enable smooth movement
• Two-stage locking concept:
– Central locking, lockable with cylinder lock and 2 folding keys
– Individual drawer locking prevents unwanted drawer opening
– 100% sliding-out with roller guides
• Total loading capacity (dynamic): 480 kg
• Loading capacity (static): 480 kg
• Loading capacity of high drawer: 20 kg
• Colour: HAZET blue
The following accessories are available separately:
1 Designation 1 Designation
112/11 Tool holder 50 179 N-35 Can holder 55
161-1 Anti-slipping mat 52 179 N-45 Tablet holder 56
161 N-3 D/2 Cable drum 52 180-24 Document holder 57
161 T-178 N/4 Separation sheet set 53 180-34 Holder for paper reel 57
179-35 Can holder 55 180-35 Can holder 55
179 N-33 Paper bin 54

YouTube Clip

178 NK-3 178 N-10
B
36 Errors excepted Components and spare parts from page 500 to 509
