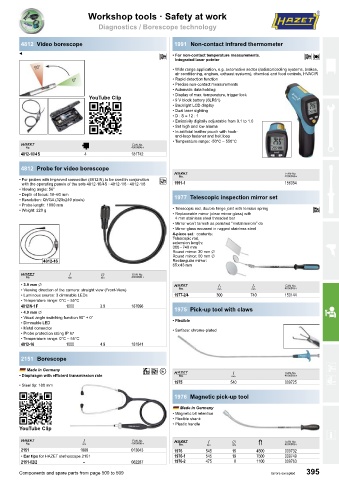

Page 397 - HAZET哈蔡特2024英文样本

Workshop tools · Safety at work

Diagnostics / Borescope technology

4812 Video borescope 1991 Non-contact infrared thermometer
C • For non-contact temperature measurements.
K Integrated laser pointer KR

• Wide range application, e.g. automotive sector (radiator/cooling systems, brakes,
air conditioning, engines, exhaust systems), chemical and food controls, HVAC/R
• Rapid detection function
• Precise non-contact measurements
• Automatic data holding
YouTube Clip • Display of max. temperature, trigger lock
• 9 V block battery (6LR61)
• Backlight LCD display
• Dual laser sighting
• D : S = 12 : 1
• Emissivity digitally adjustable from 0.1 to 1.0
• Set high and low alarms
• In artificial leather pouch with hook-
and-loop fastener and belt loop
• Temperature range: -50°C – 550°C
1 è 4
4812-10/4 S 4 181742

4812 Probe for video borescope
1 4
• For probes with improved connection (4812 N) to be used in conjunction K
with the operating panels of the sets 4812-10/4S ∙ 4812-1/6 ∙ 4812-1/8 1991-1 156054
• Viewing angle: 56°
• Depth of focus: 10–60 mm 1977 Telescopic inspection mirror set
• Resolution: QVGA (320x240 pixels)
• Probe length: 1000 mm
• Weight: 220 g • Telescopic rod, double hinge joint with tension spring K
• Replaceable mirror (clear mirror glass) with
4 mm stainless steel threaded bar
• Mirror won‘t tarnish as polished “metal mirrors” do
• Mirror glass encased in rugged stainless steel
4-piece set ∙ contents:
Telescopic rod,
extension length:
300 – 740 mm
Round mirror: 30 mm x
Round mirror: 50 mm x
4812-16 Rectangular mirror:
65 x 43 mm

1 K t 4

• 3.9 mm x 1 M N 4
• Viewing direction of the camera: straight view (Front-View)
• Luminous source: 3 dimmable LEDs 1977-2/4 300 740 150144
• Temperature range: 0°C – 55°C
4812 N-1 F 1000 3.9 187096 1975 Pick-up tool with claws
• 4.9 mm x
• Visual angle switching function 90° + 0°
• Dimmable LED • Flexible
• Metal connector • Surface: chrome-plated
• Probe protection rating IP 67
• Temperature range: 0°C – 55°C
4812-16 1000 4.9 181841

2151 Borescope

Made in Germany FK/ 1
• Diaphragm with efficient transmission rate K 4
1975 540 009725
• Steel tip: 180 mm
1976 Magnetic pick-up tool

Made in Germany
• Magnetic bit retention
• Flexible shank
• Plastic handle
YouTube Clip

1 K 4 1 K t U 4
2151 1080 013043 1976 545 15 4500 009732
• Ear tips for HAZET stethoscope 2151 1976-1 545 19 7500 009749
2151-02/2 – 062287 1976-2 475 8 1100 009763
Components and spare parts from page 500 to 509 Errors excepted 395
