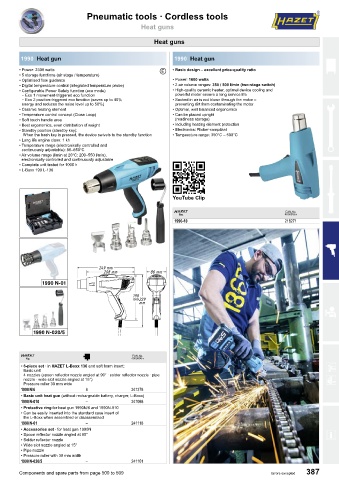

Page 389 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools

Heat guns

Heat guns

1990 Heat gun 1990 Heat gun

• Power: 2300 watts / • Basic design – excellent price-quality ratio
• 5 storage functions (air stage / temperature)
• Optimised flow guidance • Power: 1600 watts
• Digital temperature control (integrated temperature probe) • 2 air volume ranges: 350 / 500 l/min (two-stage switch)
• Configurable Power Safety function (eco mode) • High-quality ceramic heater, optimal device cooling and
− Eco 1 movement-triggered eco function powerful motor ensure a long service life
− Eco 2 position-triggered eco function (saves up to 40% • Sucked in air is not blown through the motor –
energy and reduces the noise level up to 50%) preventing dirt from contaminating the motor
• Ceramic heating element • Optimal, well balanced ergonomics
• Temperature control concept (Close Loop) • Can be placed upright
• Soft touch handle area (readiness storage)
• Best ergonomics, even distribution of weight • Including heating element protection
• Standby position (standby key): • Electronics: Flicker-compliant
When the hash key is pressed, the device swivels to the standby function • Temperature range: 350°C – 500°C
• Long life engine class: 1 kh
• Temperature range (electronically controlled and
continuously adjustable): 80–650°C
• Air volume range (l/min at 20°C: 200–550 l/min),
electronically controlled and continuously adjustable
• Complete unit tested for 1000 h
• L-Boxx 190 L-136

YouTube Clip

1 4
1990-10 218271

1990 N-01

1990 N-020/5

1 è 4

• 6-piece set ∙ in HAZET L-Boxx 136 and soft foam insert:
Basic unit
4 nozzles (spoon reflector nozzle angled at 90° ∙ solder reflector nozzle ∙ pipe
nozzle ∙ wide slot nozzle angled at 15°)
Pressure roller 30 mm wide
1990 N/6 6 241378
• Basic unit heat gun (without rechargeable battery, charger, L-Boxx)
1990 N-010 – 241088
• Protective ring for heat gun 1990N/6 and 1990N-010
• Can be easily inserted into the standard case insert of
the L-Boxx when assembled or disassembled
1990 N-01 – 241118
• Accessories set ∙ for heat gun 1990N
• Spoon reflector nozzle angled at 90°
• Solder reflector nozzle
• Wide slot nozzle angled at 15°
• Pipe nozzle
• Pressure roller with 30 mm width
1990 N-020/5 – 241101

Components and spare parts from page 500 to 509 Errors excepted 387
