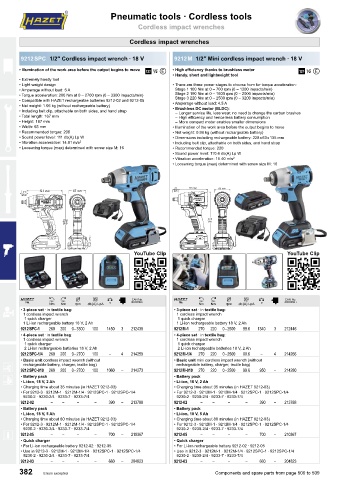

Page 384 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools Pneumatic tools ∙ Cordless tools

Cordless impact wrenches Cordless impact wrenches

Cordless impact wrenches

9212 SPC 1/2″ Cordless impact wrench ∙ 18 V 9212 M 1/2″ Mini cordless impact wrench ∙ 18 V

• Illumination of the work area before the output begins to move 3 / • High efficiency thanks to brushless motor 3 /
• Handy, short and lightweight tool
• Extremely handy tool
• Light weight design • There are three power stages to choose from for torque acceleration:
• Amperage without load: 5 A Stage 1 100 Nm at 0 – 700 rpm (0 – 1200 impacts/min)
• Torque acceleration: 200 Nm at 0 – 2700 rpm (0 – 3300 impacts/min) Stage 2 190 Nm at 0 – 1600 rpm (0 – 2000 impacts/min)
Stage 3 220 Nm at 0 – 2500 rpm (0 – 3200 impacts/min)
• Compatible with HAZET rechargeable batteries 9212-02 and 9212-05
• Net weight: 1.06 kg (without rechargeable battery) • Amperage without load: 4.5 A
• Including belt clip, attachable on both sides, and hand strap • Brushless DC motor (BLDC):
– Longer service life, less wear, no need to change the carbon brushes
• Total length: 167 mm – High efficiency and hence less battery consumption
• Height: 187 mm – More compact motor enables smaller dimensions
• Width: 65 mm • Illumination of the work area before the output begins to move
• Recommended torque: 200 • Net weight: 0.96 kg (without rechargeable battery)
• Sound power level: 111 db(A) Lp W • Dimensions including rechargeable battery: 228 x 63 x 135 mm
• Vibration acceleration: 14.91 m/s 2 • Including belt clip, attachable on both sides, and hand strap
• Loosening torque (max) determined with screw size M: 16 • Recommended torque: 220
• Sound power level: 110.6 db(A) Lp W
• Vibration acceleration: 15.40 m/s 2
• Loosening torque (max) determined with screw size M: 16

YouTube Clip YouTube Clip

1 Ú Y rpm db (A) LpA 5 è 4 1 Nm Nm rpm db (A) LpA 5 è 4
Ú
Y
^
N
N
^
Nm
Nm
• 3-piece set ∙ in textile bag: • 3-piece set ∙ in textile bag:
1 cordless impact wrench 1 cordless impact wrench
1 quick charger 1 quick charger
1 Li-ion rechargeable battery 18 V, 2 Ah 1 Li-ion rechargeable battery 18 V, 2 Ah
9212 SPC-1 260 200 0 – 3300 100 1450 3 212439 9212 M-1 270 220 0 – 2500 99.6 1340 3 212446
• 4-piece set ∙ in textile bag: • 4-piece set ∙ in textile bag:
1 cordless impact wrench 1 cordless impact wrench
1 quick charger 1 quick charger
2 Li-ion rechargeable batteries 18 V, 2 Ah 2 Li-ion rechargeable batteries 18 V, 2 Ah
9212 SPC-1/4 260 200 0 – 2700 100 – 4 214259 9212 M-1/4 270 220 0 – 2500 99.6 – 4 214266
• Basic unit cordless impact wrench (without • Basic unit mini cordless impact wrench (without
rechargeable battery, charger, textile bag) rechargeable battery, charger, textile bag)
9212 SPC-010 260 200 0 – 2700 100 1060 – 214273 9212 M-010 270 220 0 – 2500 99.6 950 – 214280
• Battery pack • Battery pack
• Li-ion, 18 V, 2 Ah • Li-ion, 18 V, 2 Ah
• Charging time about 35 minutes (in HAZET 9212-03) • Charging time about 35 minutes (in HAZET 9212-03)
• For 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4 • For 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4
9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4 9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4
9212-02 – – – – 390 – 213788 9212-02 – – – – 390 – 213788
• Battery pack • Battery pack
• Li-ion, 18 V, 5 Ah • Li-ion, 18 V, 5 Ah
• Charging time about 80 minutes (in HAZET 9212-03) • Charging time about 80 minutes (in HAZET 9212-03)
• For 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4 • For 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4
9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4 9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4
9212-05 – – – – 700 – 210367 9212-05 – – – – 700 – 210367
• Quick charger • Quick charger
• For Li-ion rechargeable battery 9212-02 ∙ 9212-05 • For Li-ion rechargeable battery 9212-02 ∙ 9212-05
• Use in 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4 • Use in 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4
9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4 9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4
9212-03 – – – – 660 – 204823 9212-03 – – – – 660 – 204823
382 Errors excepted Components and spare parts from page 500 to 509
