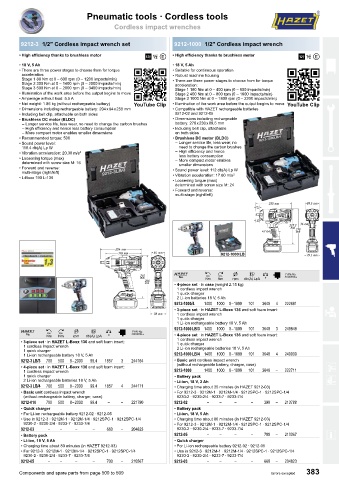

Page 385 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools

Cordless impact wrenches

9212-3 1/2″ Cordless impact wrench set 9212-1000 1/2″ Cordless impact wrench

• High efficiency thanks to brushless motor 3 / • High efficiency thanks to brushless motor 3 /
• 18 V, 5 Ah • 18 V, 5 Ah
• There are three power stages to choose from for torque • Suitable for continuous operation
acceleration: • Robust machine housing
Stage 1 80 Nm at 0 – 600 rpm (0 – 1200 impacts/min) • There are three power stages to choose from for torque
Stage 2 300 Nm at 0 – 1400 rpm (0 – 2500 impacts/min) acceleration:
Stage 3 500 Nm at 0 – 2000 rpm (0 – 3400 impacts/min) Stage 1 180 Nm at 0 – 400 rpm (0 – 800 impacts/min)
• Illumination of the work area before the output begins to move Stage 2 400 Nm at 0 – 800 rpm (0 – 1600 impacts/min)
• Amperage without load: 5.5 A Stage 3 1000 Nm at 0 – 1800 rpm (0 – 2200 impacts/min)
• Net weight: 1.86 kg (without rechargeable battery) YouTube Clip • Illumination of the work area before the output begins to move YouTube Clip
• Dimensions including rechargeable battery: 204 x 64 x 259 mm • Compatible with HAZET rechargeable batteries
• Including belt clip, attachable on both sides 9212-02 and 9212-05
• Brushless DC motor (BLDC) • Dimensions including rechargeable
– Longer service life, less wear, no need to change the carbon brushes battery: 278 x 230 x 89.5 mm
– High efficiency and hence less battery consumption • Including belt clip, attachable
– More compact motor enables smaller dimensions on both sides
• Recommended torque: 500 • Brushless DC motor (BLDC)
• Sound power level: – Longer service life, less wear, no
110.4 db(A) Lp W need to change the carbon brushes
• Vibration acceleration: 20.30 m/s 2 – High efficiency and hence
less battery consumption
• Loosening torque (max) – More compact motor enables
determined with screw size M: 16 smaller dimensions
• Forward and reverse: • Sound power level: 112 db(A) Lp W
multi-stage (right/left) 2
• L-Boxx 190 L-136 • Vibration acceleration: 17.80 m/s
• Loosening torque (max)
determined with screw size M: 24
• Forward and reverse:
multi-stage (right/left)

9212-1000 LB

1 Ú Y rpm db (A) LpA 5 è 4
N
^
Nm
Nm
• 4-piece set ∙ in case (weight 2.15 kg):
1 cordless impact wrench
1 quick charger
2 Li-ion batteries 18 V, 5 Ah
9212-1000/4 1400 1000 0 – 1800 101 3640 4 222681
• 3-piece set ∙ in HAZET L-Boxx 136 and soft foam insert:
1 cordless impact wrench
1 quick charger
1 Li-ion rechargeable battery 18 V, 5 Ah
9212-1000 LB/3 1400 1000 0 – 1800 101 3640 3 249848
1 Ú Y rpm db (A) LpA 5 è 4 • 4-piece set ∙ in HAZET L-Boxx 136 and soft foam insert:
^
N
Nm
Nm
• 3-piece set ∙ in HAZET L-Boxx 136 and soft foam insert: 1 cordless impact wrench
1 quick charger
1 cordless impact wrench 2 Li-ion rechargeable batteries 18 V, 5 Ah
1 quick charger
1 Li-ion rechargeable battery 18 V, 5 Ah 9212-1000 LB/4 1400 1000 0 – 1800 101 3640 4 249909
9212-3 LB/3 700 500 0 – 2000 99.4 1857 3 244164 • Basic unit cordless impact wrench
• 4-piece set ∙ in HAZET L-Boxx 136 and soft foam insert: (without rechargeable battery, charger, case)
1 cordless impact wrench 9212-1000 1400 1000 0 – 1800 101 3640 – 222711
1 quick charger • Battery pack
2 Li-ion rechargeable batteries 18 V, 5 Ah • Li-ion, 18 V, 2 Ah
9212-3 LB/4 700 500 0 – 2000 99.4 1857 4 244171 • Charging time about 35 minutes (in HAZET 9212-03)
• Basic unit cordless impact wrench • For 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4
(without rechargeable battery, charger, case) 9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4
9212-010 700 500 0 – 2000 99.4 – – 221790 9212-02 – – – – 390 – 213788
• Quick charger • Battery pack
• For Li-ion rechargeable battery 9212-02 ∙ 9212-05 • Li-ion, 18 V, 5 Ah
• Use in 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4 • Charging time about 80 minutes (in HAZET 9212-03)
9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4 • For 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4
9212-03 – – – – 660 – 204823 9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4
• Battery pack 9212-05 – – – – 700 – 210367
• Li-ion, 18 V, 5 Ah • Quick charger
• Charging time about 80 minutes (in HAZET 9212-03) • For Li-ion rechargeable battery 9212-02 ∙ 9212-05
• For 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4 • Use in 9212-3 ∙ 9212M-1 ∙ 9212M-1/4 ∙ 9212SPC-1 ∙ 9212SPC-1/4
9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4 9230-2 ∙ 9230-2/4 ∙ 9233-7 ∙ 9233-7/4
9212-05 – – – – 700 – 210367 9212-03 – – – – 660 – 204823
Components and spare parts from page 500 to 509 Errors excepted 383
