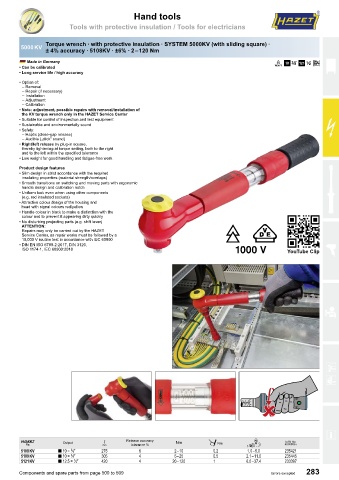

Page 285 - HAZET哈蔡特2024英文样本

Hand tools

Tools with protective insulation / Tools for electricians

5000 KV Torque wrench ∙ with protective insulation ∙ SYSTEM 5000KV (with sliding square) ∙
± 4% accuracy ∙ 5108KV ∙ ±6% ∙ 2 – 120 Nm
Made in Germany A 23 K
• Can be calibrated
• Long service life / high accuracy

• Option of:
– Removal
– Repair (if necessary)
– Installation
– Adjustment
– Calibration
• Note: adjustment, possible repairs with removal/installation of
the KV torque wrench only in the HAZET Service Center
• Suitable for control of inspection and test equipment
• Sustainable and environmentally sound
• Safety:
– Haptic (close-gap release)
– Audible („click“ sound)
• Right/left release by plug-in square,
thereby tightening at torque setting, both to the right
and to the left within the specified tolerance
• Low weight for good handling and fatigue-free work
Product design features
• Slim design in strict accordance with the required
insulating properties (material strength/overlaps)
• Smooth transitions on switching and moving parts with ergonomic
handle design and calibration notch
• Uniform look even when using other components
(e.g. red insulated sockets)
• Attractive colour design of the housing and
head with signal colours red/yellow
• Handle colour in black to make a distinction with the
colour and to prevent it appearing dirty quickly
• No disturbing projecting parts (e.g. shift lever)
ATTENTION:
Repairs may only be carried out by the HAZET B
Service Center, as repair works must be followed by a
10,000 V routine test in accordance with IEC 60900
• DIN EN ISO 6789-2:2017, DIN 3120,
ISO 1174-1, IEC 60900:2018 YouTube Clip

1 Output K Release accuracy ! Å Nm # 4
tolerance %
3
5108 KV i 10 = ⁄8″ 275 6 2 – 10 0.2 1.0 – 5.0 235421
5109 KV i 10 = ⁄8″ 305 4 5 – 25 0.5 2.1 – 11.0 235445
3
5121 KV i 12.5 = ⁄2″ 420 4 20 – 120 1 6.0 – 37.4 233397
1
Components and spare parts from page 500 to 509 Errors excepted 283
