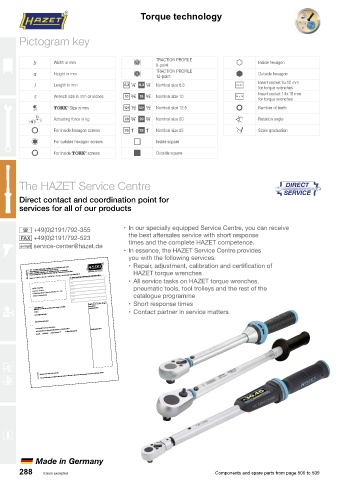

Page 290 - HAZET哈蔡特2024英文样本

Torque technology Torque technology

Pictogram key

ö Width in mm $ TRACTION PROFILE h Inside hexagon
6-point
ä Height in mm % TRACTION PROFILE g Outside hexagon
12-point
l Length in mm 6 1 Nominal size 6.3 B Insert socket 9 x 12 mm
for torque wrenches
s Wrench size in mm or inches 7 2 Nominal size 10 D Insert socket 14 x 18 mm
for torque wrenches
r h Size in mm 8 3 Nominal size 12.5 f Number of teeth

# Actuating force in kg 9 4 Nominal size 20 . ° Rotation angle
b For inside hexagon screws 0 5 Nominal size 25 Å Scale graduation
c For outside hexagon screws j Inside square

N For inside h screws i Outside square

The HAZET Service Centre

Direct contact and coordination point for
services for all of our products

[ +49(0)2191/792-355 • In our specially equipped Service Centre, you can receive
\ +49(0)2191/792-523 the best aftersales service with short response
times and the complete HAZET competence.
] service-center@hazet.de
• In essence, the HAZET Service Centre provides
you with the following services:
• Repair, adjustment, calibration and certification of
HAZET torque wrenches
• All service tasks on HAZET torque wrenches,
pneumatic tools, tool trolleys and the rest of the
catalogue programme
• Short response times
• Contact partner in service matters

Made in Germany
288 Errors excepted Components and spare parts from page 500 to 509
