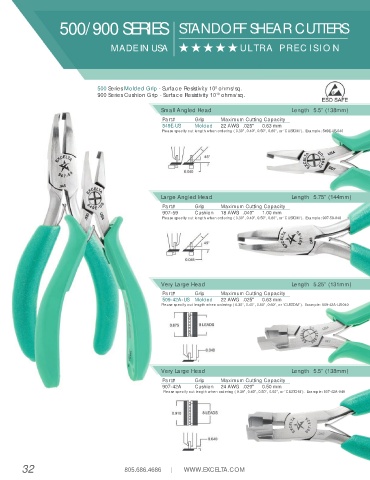

500/900 SERIES STANDOFF SHEAR CUTTERS

MADE IN USA HHHHH ULTRA PRECISION

500 Series Molded Grip - Surface Resistivity 10 ohms/sq.
8
900 Series Cushion Grip - Surface Resistivity 10 ohms/sq.
10
Small Angled Head Length 5.5” (138mm)
Part# Grip Maximum Cutting Capacity
549E-US Molded 22 AWG .025" 0.63 mm
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 549E-US-040

Large Angled Head Length 5.75” (144mm)
Part# Grip Maximum Cutting Capacity
907-59 Cushion 18 AWG .040" 1.00 mm
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 907-59-040

Very Large Head Length 5.25” (131mm)
Part# Grip Maximum Cutting Capacity
509-42A-US Molded 22 AWG .025" 0.63 mm
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 509-42A-US-040

Very Large Head Length 5.5” (138mm)
Part# Grip Maximum Cutting Capacity
907-42A Cushion 24 AWG .020" 0.50 mm
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 907-42A-040

32 805.686.4686 | WWW.EXCELTA.COM
