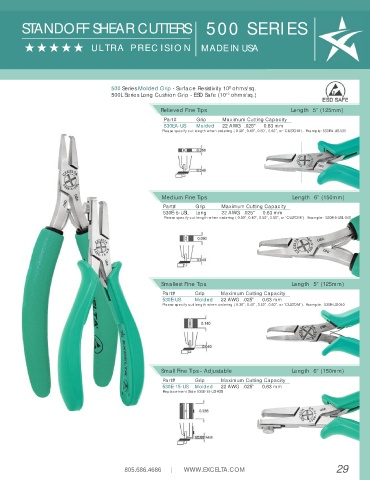

Page 29 - Excelta-2019-Catalog

STANDOFF SHEAR CUTTERS 500 SERIES

HHHHH ULTRA PRECISION MADE IN USA

500 Series Molded Grip - Surface Resistivity 10 ohms/sq.
8
500L Series Long Cushion Grip - ESD Safe (10 ohms/sq.)
10
Relieved Fine Tips Length 5” (125mm)
Part# Grip Maximum Cutting Capacity
530EA-US Molded 22 AWG .025" 0.63 mm
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 530EA-US-030
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 530EA-US-030

Medium Fine Tips Length 6” (150mm)
Part# Grip Maximum Cutting Capacity
530E-5-USL Long 22 AWG .025" 0.63 mm
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 530E-5-USL-040

Smallest Fine Tips Length 5” (125mm)
Part# Grip Maximum Cutting Capacity
530E-US Molded 22 AWG .025" 0.63 mm
Please specify cut length when ordering ( 0.30”, 0.40”, 0.50”, 0.60”, or ‘CUSTOM’). Example: 530E-US-040

Small Fine Tips - Adjustable Length 6” (150mm)
Part# Grip Maximum Cutting Capacity
530E-15-US Molded 22 AWG .025" 0.63 mm
Replacement Slide 530E-15-US-RSS
