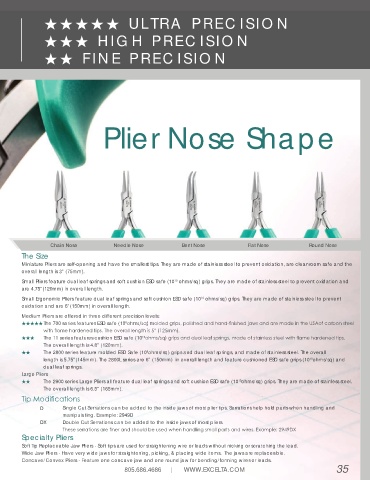

Page 35 - Excelta-2019-Catalog

HHHHH ULTRA PRECISION

HHH HIGH PRECISION

HH FINE PRECISION

Plier Nose Shape

Chain Nose Needle Nose Bent Nose Flat Nose Round Nose
The Size
Miniature Pliers are self-opening and have the smallest tips. They are made of stainless steel to prevent oxidation, are cleanroom safe and the
overall length is 3” (75mm).
Small Pliers feature dual leaf springs and soft cushion ESD safe (10 ohms/sq) grips. They are made of stainless steel to prevent oxidation and
10
are 4.75”(120mm) in overall length.
Small Ergonomic Pliers feature dual leaf springs and soft cushion ESD safe (10 ohms/sq) grips. They are made of stainless steel to prevent
10
oxidation and are 6”(150mm) in overall length.
Medium Pliers are offered in three different precision levels:
HHHHH The 700 series features ESD safe (10 ohms/sq) molded grips, polished and hand-finished jaws and are made in the USAof carbon steel
8
with flame hardened tips. The overall length is 5” (125mm).
10
HHH The 11 series features cushion ESD safe (10 ohms/sq) grips and dual leaf springs, made of stainless steel with flame hardened tips.
The overall length is 4.8” (120mm).
8
HH The 2800 series feature molded ESD Safe (10 ohms/sq) grips and dual leaf springs, and made of stainless steel. The overall
length is 5.75”(145mm). The 2800L series are 6” (150mm) in overall length and feature cushioned ESD safe grips (10 ohms/sq) and
10
dual leaf springs.
Large Pliers
10
HH The 2900 series Large Pliers all feature dual leaf springs and soft cushion ESD safe (10 ohms/sq) grips. They are made of stainless steel.
The overall length is 6.5” (165mm).
Tip Modifi cations

D Single Cut Serrations can be added to the inside jaws of most plier tips. Serrations help hold parts when handling and
manipulating. Example: 2949D
DX Double Cut Serrations can be added to the inside jaws of most pliers.
These serrations are finer and should be used when handling small parts and wires. Example: 2949DX
Specialty Pliers
Soft Tip Replaceable Jaw Pliers - Soft tips are used for straightening wire or leads without nicking or scratching the lead.
Wide Jaw Pliers - Have very wide jaws for straightening, picking, & placing wide items. The jaws are replaceable.
Concave/Convex Pliers - Feature one concave jaw and one round jaw for bending/forming wires or leads.
805.686.4686 | WWW.EXCELTA.COM 35
