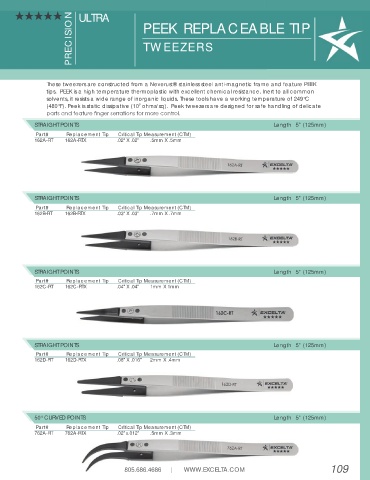

Page 109 - Excelta-2019-Catalog

HHHHH ULTRA PEEK REPLACEABLE TIP
PRECISION TWEEZERS

These tweezers are constructed from a Neverust® stainless steel anti-magnetic frame and feature PEEK
tips. PEEK is a high temperature thermoplastic with excellent chemical resistance. Inert to all common
solvents, it resists a wide range of inorganic liquids. These tools have a working temperature of 249°C
(480°F). Peek is static dissipative (10 ohms/sq). Peek tweezers are designed for safe handling of delicate
7
parts and feature fi nger serrations for more control.
STRAIGHT POINTS Length 5” (125mm)
Part# Replacement Tip Critical Tip Measurement (CTM)
162A-RT 162A-RTX .02" X .02" .5mm X .5mm

STRAIGHT POINTS Length 5” (125mm)
Part# Replacement Tip Critical Tip Measurement (CTM)
162B-RT 162B-RTX .03" X .03" .7mm X .7mm

STRAIGHT POINTS Length 5” (125mm)
Part# Replacement Tip Critical Tip Measurement (CTM)
162C-RT 162C-RTX .04" X .04" 1mm X 1mm

STRAIGHT POINTS Length 5” (125mm)
Part# Replacement Tip Critical Tip Measurement (CTM)
162D-RT 162D-RTX .08" X .016" 2mm X .4mm

50° CURVED POINTS Length 5” (125mm)
Part# Replacement Tip Critical Tip Measurement (CTM)
762A-RT 762A-RTX .02”x.012” .5mm X .3mm

|
WWW.EXCELTA.COM

805.686.4686
805.686.4686 | WWW.EXCELTA.COM 109
