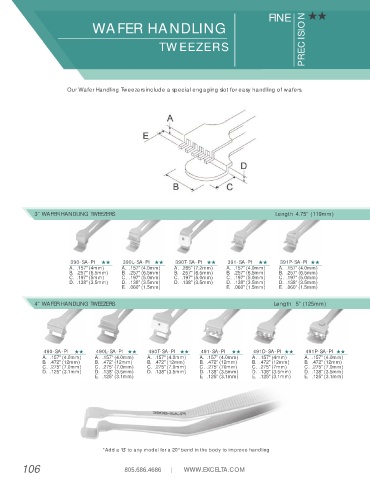

Page 106 - Excelta-2019-Catalog

FINE HH
WAFER HANDLING

TWEEZERS PRECISION

Our Wafer Handling Tweezers include a special engaging slot for easy handling of wafers.

3” WAFER HANDLING TWEEZERS Length 4.75” (119mm)

390-SA-PI HH 390L-SA-PI HH 390T-SA-PI HH 391-SA-PI HH 391P-SA-PI HH
A. .157" (4mm) A. .157" (4.0mm) A. .285" (7.2mm) A. .157" (4.0mm) A. .157" (4.0mm)
B. .257" (6.5mm) B. .257" (6.5mm) B. .257" (6.5mm) B. .257" (6.5mm) B. .257" (6.5mm)
C. .197" (5mm) C. .197" (5.0mm) C. .197" (5.0mm) C. .197" (5.0mm) C. .197" (5.0mm)
D. .138" (3.5mm) D. .138" (3.5mm) D. .138" (3.5mm) D. .138" (3.5mm) D. .138" (3.5mm)
E. .060" (1.5mm) E. .060" (1.5mm) E. .060" (1.5mm)

4” WAFER HANDLING TWEEZERS Length 5” (125mm)

490-SA-PI HH 490L-SA-PI HH 490T-SA-PI HH 491-SA-PI HH 491D-SA-PI HH 491P-SA-PI HH
A. .157" (4.0mm) A. .157" (4.0mm) A. .157" (4.0mm) A. .157" (4.0mm) A. .157" (4mm) A. .157" (4.0mm)
B. .472" (12mm) B. .472" (12mm) B. .472" (12mm) B. .472" (12mm) B. .472" (12mm) B. .472" (12mm)
C. .275" (7.0mm) C. .275" (7.0mm) C. .275" (7.0mm) C. .275" (70mm) C. .275" (7mm) C. .275" (7.0mm)
D. .125" (3.1mm) D. .138" (3.5mm) D. .138" (3.5mm) D. .138" (3.5mm) D. .138" (3.5mm) D. .138" (3.5mm)
E. .125" (3.1mm) E. .125" (3.1mm) E. .125" (3.1mm) E. .125" (3.1mm)

*Add a ‘B’ to any model for a 20° bend in the body to improve handling
