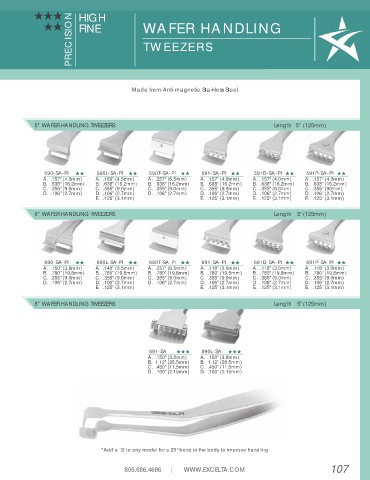

Page 107 - Excelta-2019-Catalog

HHH HIGH
PRECISION TWEEZERS
HH FINE WAFER HANDLING

Made from Anti-magnetic Stainless Steel.

5” WAFER HANDLING TWEEZERS Length 5” (125mm)

590-SA-PI HH 590L-SA-PI HH 590T-SA-PI HH 591-SA-PI HH 591D-SA-PI HH 591P-SA-PI HH
A. .157" (4.0mm) A. .180" (4.5mm) A. .257" (6.5mm) A. .157" (4.0mm) A. .157" (4.0mm) A. .157" (4.0mm)
B. .638" (16.2mm) B. .638" (16.2mm) B. .638" (16.2mm) B. .638" (16.2mm) B. .638" (16.2mm) B. .638" (16.2mm)
C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (90mm)
D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm)
E. .125" (3.1mm) E. .125" (3.1mm) E. .125" (3.1mm) E. .125" (3.1mm)

6” WAFER HANDLING TWEEZERS Length 5”(125mm)

690-SA-PI HH 690L-SA-PI HH 690T-SA-PI HH 691-SA-PI HH 691D-SA-PI HH 691P-SA-PI HH
A. .150" (3.8mm) A. .140" (3.5mm) A. .257" (6.5mm) A. .118" (3.0mm) A. .118" (3.0mm) A. .118" (3.0mm)
B. .780" (19.8mm) B. .780" (19.8mm) B. .780" (19.8mm) B. .780" (19.8mm) B. .780" (19.8mm) B. .780" (19.8mm)
C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (9.0mm) C. .355" (9.0mm)
D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm) D. .106" (2.7mm)
E. .125" (3.1mm) E. .125" (3.1mm) E. .125" (3.1mm) E. .125" (3.1mm)

8” WAFER HANDLING TWEEZERS Length 5”(125mm)

891-SA HHH 890L-SA HHH
A. .150" (3.8mm) A. .150" (3.8mm)
B. 1.12" (28.5mm) B. 1.12" (28.5mm)
C. .450" (11.5mm) C. .450" (11.5mm)
D. .100" (2.15mm) D. .100" (2.15mm)

*Add a ‘B’ to any model for a 20° bend in the body to improve handling
