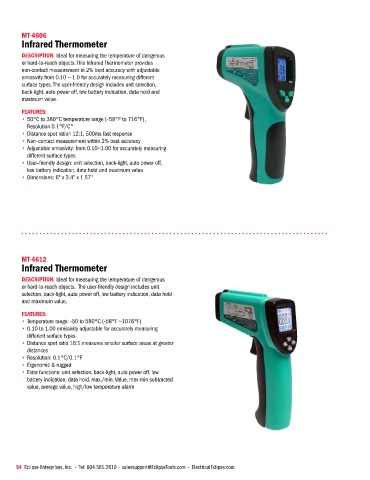

Page 56 - EclipseTools_2019-2020_Electrical

MT-4606
Infrared Thermometer

DESCRIPTION: Ideal for measuring the temperature of dangerous
or hard‑to‑reach objects. This Infrared Thermometer provides
non‑contact measurement in 2% best accuracy with adjustable
emissivity from 0.10 ~ 1.0 for accurately measuring different
surface types. The user‑friendly design includes unit selection,
back‑light, auto power off, low battery indication, data hold and
maximum value.
FEATURES:
• 50°C to 380°C temperature range (–58°F to 716°F),
Resolution 0.1°F/C°
• Distance spot ration 12:1, 500ms fast response
• Non–contact measurement within 2% best accuracy
• Adjustable emissivity: from 0.10~1.00 for accurately measuring
different surface types
• User–friendly design: unit selection, back‑light, auto power off,
low battery indication, data hold and maximum value
• Dimensions: 6" x 3.4" x 1.57"

MT-4612
Infrared Thermometer

DESCRIPTION: Ideal for measuring the temperature of dangerous
or hard‑to‑reach objects. The user‑friendly design includes unit
selection, back‑light, auto power off, low battery indication, data hold
and maximum value.

FEATURES:
• Temperature range: ‑50 to 580°C (‑58°F ~1076°F)
• 0.10 to 1.00 emissivity adjustable for accurately measuring
different surface types
• Distance spot ratio 16:1 measures smaller surface areas at greater
distances
• Resolution: 0.1°C/0.1°F
• Ergonomic & rugged
• Extra functions: unit selection, back‑light, auto power off, low
battery indication, data hold, max./min. Value, max‑min subtracted
value, average value, high/low temperature alarm
