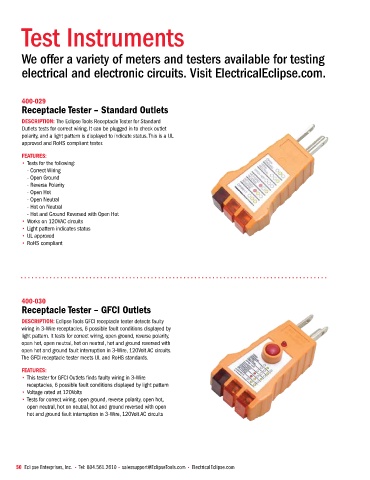

Page 52 - EclipseTools_2019-2020_Electrical

Test Instruments

We offer a variety of meters and testers available for testing

electrical and electronic circuits. Visit ElectricalEclipse.com.

400-029
Receptacle Tester – Standard Outlets

DESCRIPTION: The Eclipse Tools Receptacle Tester for Standard
Outlets tests for correct wiring. It can be plugged in to check outlet
polarity, and a light pattern is displayed to indicate status. This is a UL
approved and RoHS compliant tester.
FEATURES:
• Tests for the following:
‑ Correct Wiring
‑ Open Ground
‑ Reverse Polarity
‑ Open Hot
‑ Open Neutral
‑ Hot on Neutral
‑ Hot and Ground Reversed with Open Hot
• Works on 120VAC circuits
• Light pattern indicates status
• UL approved
• RoHS compliant

400-030
Receptacle Tester – GFCI Outlets

DESCRIPTION: Eclipse Tools GFCI receptacle tester detects faulty
wiring in 3‑Wire receptacles, 6 possible fault conditions displayed by
light pattern. It tests for correct wiring, open ground, reverse polarity,
open hot, open neutral, hot on neutral, hot and ground reversed with
open hot and ground fault interruption in 3‑Wire, 120Volt AC circuits.
The GFCI receptacle tester meets UL and RoHS standards.

FEATURES:
• This tester for GFCI Outlets finds faulty wiring in 3‑Wire
receptacles, 6 possible fault conditions displayed by light pattern
• Voltage rated at 120Volts
• Tests for correct wiring, open ground, reverse polarity, open hot,
open neutral, hot on neutral, hot and ground reversed with open
hot and ground fault interruption in 3‑Wire, 120Volt AC circuits
