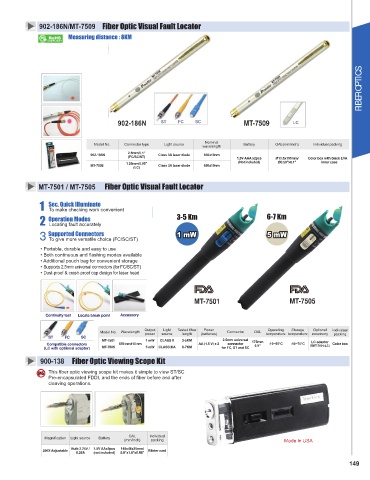

902-186N/MT-7509 Fiber Optic Visual Fault Locator

Measuring distance : 8KM

FIBER OPTICS

902-186N ST FC SC MT-7509 LC

Nominal
Model No. Connector type Light source wavelength Battery OAL(mm/inch) Individual packing
2.5mm/0.1"
902-186N (FC/SC/ST) Class 3A laser diode 650±10nm 1.5V AAA x2pcs Ø13.5x155mm/ Color box with black EVA
MT-7509 1.25mm/0.05" Class 3A laser diode 650±10nm (Not included) Ø0.53"x6.1" inner case
(LC)

MT-7501 / MT-7505 Fiber Optic Visual Fault Locator

1 Sec. Quick Illuminate
To make checking work convenient
2 Operation Modes 3-5 Km 6-7 Km
Locating fault accurately
3 Supported Connectors
To give more versatile choice (FC/SC/ST)
• Portable, durable and easy to use
• Both continuous and flashing modes available
• Additional pouch bag for convenient storage
• Supports 2.5mm universal connectors (for FC/SC/ST)
• Dust-proof & crash-proof cap design for laser head

MT-7501 MT-7505

Continuity test Locate break point Accessory

Output Light Tested fiber Power Operating Storage Optional Individual
Model No. Wavelength power source length (batteries) Connector OAL temperature temperature accessory packing
ST FC SC
MT-7501 1 mW CLASS II 3-5KM 2.5mm universal 175mm LC adaptor
Compatible connectors 650 nm±10 nm AA (1.5 V) x 2 connector 6.9" -10~55°C -10~70°C (5MT-7601-LC) Color box
(LC with optiional adaptor) MT-7505 5 mW CLASS IIIA 6-7KM for FC, ST and SC
900-138 Fiber Optic Viewing Scope Kit
This fiber optic viewing scope kit makes it simple to view ST/SC
Pre-encapsulated FDDI, and the ends of fiber before and after
cleaving operations.

OAL Individual
Magnification Light source Battery (mm/inch) packing Made in USA
Bulb 2.25V / 1.5V AAx2pcs 148x46x25mm/
200X Adjustable Blister card
0.25A (not included) 5.8"x1.8"x0.98"
