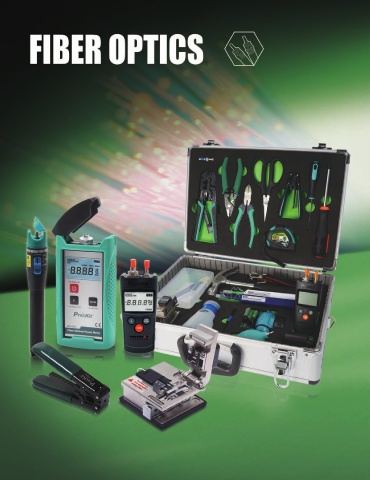

Fiber Optic Tools Technical Basics

is a leading supplier of fiber optic tools and accessories. The one-stop shop provides complete solution for fiber optic
termination tools such as strippers, Kevlar cutters, viewing scope, testers, fiber scribes, and cleaning kit.

Fiber Optic Connectors types (For reference only, we don’t offer fiber connectors)
ST connector SC connector LC connector MTRJ connector

For datacom and telecom, For multimode, rarely single For high-density connections, For duplex multimode connections
widely used mode, APC not possible SFP transceivers

Fiber Optic Termination Procedure

STEP STEP Inspection
STEP Stripping Bonding
1 PVC jacket 5 9

STEP Crimping

STEP Cutting 6 Connector Continuity
testing
2 Kevlar STEP Cleaving STEP

STEP Stripping 7 Fiber 10
3 Buffer & Power Loss
Coating

STEP Cleaning STEP Polishing STEP testing
Fiber
4 8 11

Fiber Optic Cable Test Method:
After the cables are installed and terminated, it's time for testing. For every fiber optic cable assembly, you will need to test the continuity, end-to-end
loss and troubleshoot the problems. fiber optic tester will help to do this step more efficiently.

Continuity test by MT-7501 / MT-7505 End-to-end loss test by MT-7601 / MT-7602

Continuity test Locate break point Fiber Tester Fiber optical power test
