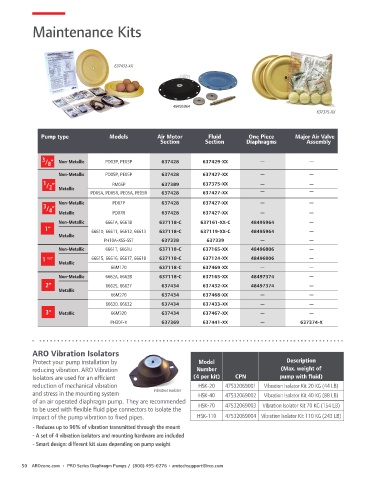

Maintenance Kits






                                       637432-XX






                                                          48495964
                                                                                                          637375-XX



               Pump type             Models          Air Motor        Fluid        One Piece       Major Air Valve
                                                      Section        Section       Diaphragms         Assembly

                3 / ”  Non-Metallic  PD03P, PE03P     637428        637429-XX          —               —
                 8
                    Non-Metallic    PD05P, PE05P      637428        637427-XX          —               —
                1 / ”                 PM05P           637389        637375-XX          —               —
                 2
                    Metallic
                               PD05A, PD05R, PE05A, PE05R   637428  637427-XX          —               —
                    Non-Metallic      PD07P           637428        637427-XX          —               —
                3 / ”  Metallic       PD07R           637428        637427-XX          —               —
                 4
                    Non-Metallic    6661A, 6661B      637118-C     637161-XX-C      48495964           —
                1”             66610, 66611, 66612, 66613  637118-C  637119-XX-C    48495964           —

                    Metallic
                                   PH10A-XSS-SST      637338         637339            —               —
                    Non-Metallic    6661T, 6661U      637118-C      637165-XX       48496806           —
               1  1/2"         66615, 66616, 66617, 66618  637118-C  637124-XX      48496806           —
                    Metallic
                                      66M170          637118-C      637469-XX          —               —
                    Non-Metallic    6662A, 6662B      637118-C      637165-XX       48497374           —
                  2”                66625, 66627      637434        637432-XX       48497374           —
                    Metallic
                                      66M270          637434        637468-XX          —               —
                                    66630, 66632      637434        637433-XX          —               —
                  3”  Metallic        66M320          637434        637467-XX          —               —
                                      PH30F-X         637369        637441-XX          —            637374-X




            ARO Vibration Isolators
            Protect your pump installation by                      Model                        Description
            reducing vibration. ARO Vibration                     Number                      (Max. weight of
            Isolators are used for an efficient                  (4 per kit)   CPN            pump with fluid)
            reduction of mechanical vibration                      HSK-20   47532069001  Vibration Isolator Kit 20 KG (44 LB)
            and stress in the mounting system       Vibration Isolator  HSK-40  47532069002  Vibration Isolator Kit 40 KG (88 LB)
            of an air operated diaphragm pump. They are recommended   HSK-70  47532069003  Vibration Isolator Kit 70 KG (154 LB)
            to be used with flexible fluid pipe connectors to isolate the
            impact of the pump vibration to fixed pipes.          HSK-110   47532069004 Vibration Isolator Kit 110 KG (243 LB)
            - Reduces up to 96% of vibration transmitted through the mount
            - A set of 4 vibration isolators and mounting hardware are included
            - Smart design: different kit sizes depending on pump weight
