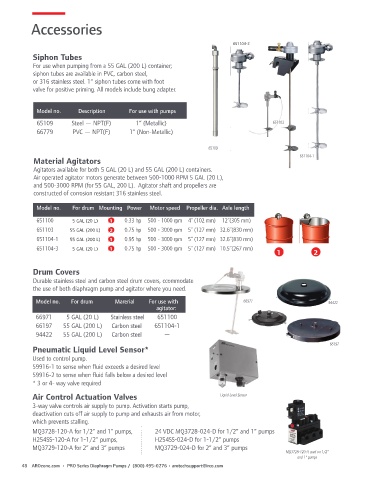

Accessories

651104-3

Siphon Tubes
For use when pumping from a 55 GAL (200 L) container;
siphon tubes are available in PVC, carbon steel,
or 316 stainless steel. 1“ siphon tubes come with foot
valve for positive priming. All models include bung adapter.

Model no. Description For use with pumps

65109 Steel — NPT(F) 1” (Metallic) 651103
66779 PVC — NPT(F) 1” (Non-Metallic)

65109
651104-1
Material Agitators
Agitators available for both 5 GAL (20 L) and 55 GAL (200 L) containers.
Air operated agitator motors generate between 500-1000 RPM 5 GAL (20 L),
and 500-3000 RPM (for 55 GAL, 200 L). Agitator shaft and propellers are
constructed of corrosion resistant 316 stainless steel.

Model no. For drum Mounting Power Motor speed Propeller dia. Axle length

651100 5 GAL (20 L) 1 0.33 hp 500 - 1000 rpm 4˝ (102 mm) 12˝(305 mm)
651103 55 GAL (200 L) 2 0.75 hp 500 - 3000 rpm 5˝ (127 mm) 32.6˝(830 mm)
651104-1 55 GAL (200 L) 1 0.95 hp 500 - 3000 rpm 5˝ (127 mm) 32.6˝(830 mm)
651104-3 5 GAL (20 L) 1 0.75 hp 500 - 3000 rpm 5˝ (127 mm) 10.5˝(267 mm)
1 2

Drum Covers
Durable stainless steel and carbon steel drum covers, ccommodate
the use of both diaphragm pump and agitator where you need.

Model no. For drum Marerial For use with 66971 94422
agitator:
66971 5 GAL (20 L) Stainless steel 651100
66197 55 GAL (200 L) Carbon steel 651104-1
94422 55 GAL (200 L) Carbon steel —
66197
Pneumatic Liquid Level Sensor*
Used to control pump.
59916-1 to sense when fluid exceeds a desired level
59916-2 to sense when fluid falls below a desired level
* 3 or 4- way valve required

Air Control Actuation Valves Liquid Level Sensor
3-way valve controls air supply to pump. Activation starts pump,
deactivation cuts off air supply to pump and exhausts air from motor,
which prevents stalling.
MQ3728-120-A for 1/2” and 1” pumps, 24 VDC MQ3728-024-D for 1/2” and 1” pumps
H254SS-120-A for 1-1/2” pumps, H254SS-024-D for 1-1/2” pumps
MQ3729-120-A for 2” and 3” pumps MQ3729-024-D for 2” and 3” pumps
MQ3728-120-A used on 1/2”
and 1” pumps
