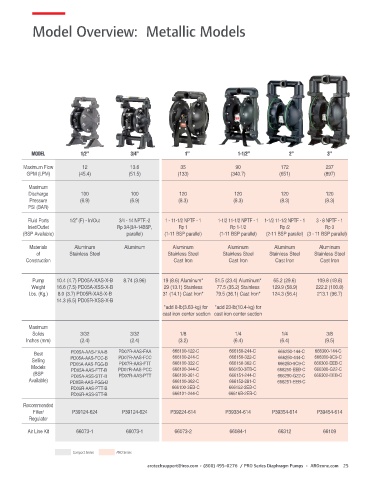

Model Overview: Metallic Models

MODEL 1/2” 3/4” 1” 1-1/2” 2” 3”

Maximum Flow 12 13.6 35 90 172 237
GPM (LPM) (45.4) (51.5) (133) (340.7) (651) (897)

Maximum
Discharge 100 100 120 120 120 120
Pressure (6.9) (6.9) (8.3) (8.3) (8.3) (8.3)
PSI (BAR)

Fluid Ports 1/2” (F) - In/Out 3/4 - 14 NPTF.-2 1 - 11-1/2 NPTF - 1 1-1/2 11-1/2 NPTF - 1 1-1/2 11-1/2 NPTF - 1 3 - 8 NPTF - 1
Inlet/Outlet Rp 3/4(3/4-14BSP, Rp 1 Rp 1-1/2 Rp /2 Rp 3
(BSP Available) parallel) (1-11 BSP parallel) (1-11 BSP parallel) (2-11 BSP parallel) (3 - 11 BSP parallel)

Materials Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
of Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Construction Cast Iron Cast Iron Cast Iron Cast Iron

Pump 10.4 (4.7) PD05A-XAS-X-B 8.74 (3.96) 19 (8.6) Aluminum* 51.5 (23.4) Aluminum* 65.2 (29.6) 109.8 (49.8)
Weight 16.6 (7.5) PD05A-XSS-X-B 29 (13.1) Stainless 77.5 (35.2) Stainless 129.9 (58.9) 222.2 (100.8)
Lbs. (Kg.) 8.0 (3.7) PD05R-XAS-X-B 31 (14.1) Cast Iron* 79.5 (36.1) Cast Iron* 124.3 (56.4) 213.1 (96.7)
14.3 (6.5) PD05R-XSS-X-B
*add 8-lb(3.63-kg) for *add 23-lb(10.4-kg) for
cast iron center section cast iron center section

Maximum
Solids 3/32 3/32 1/8 1/4 1/4 3/8
Inches (mm) (2.4) (2.4) (3.2) (6.4) (6.4) (9.5)
666150-244-C
666100-122-C
666300-144-C
PD07R-AAS-FAA
666250-144-C
PD05A-AAS-FAA-B
Best PD05P-AAS-FAA PD07R-AAS-FAA 666100-122-C 666150-361-C 666250-EEB-C 666300-EEB-C
PD05A-AAS-FCC-B PD07R-AAS-FCC 666100-244-C 666150-322-C 666250-444-C 666300-9C9-C
Selling PD05P-AAS-FTT PD07R-AAS-PAA 666100-144-C 666150-362-C 666250-144-C 666300-144-C
PD05A-AAS-FGG-B PD07R-AAS-FTT 666100-322-C 666150-362-C 666250-9C9-C 666300-EEB-C
Models PD05P-AAS-PGG PD07R-AAS-FTT 666101-244-C 666150-3EB-C 666250-9C9-C 666300-9C9-C
PD05A-AAS-FTT-B PD07R-AAS-PCC 666100-344-C 666150-3EB-C 666250-EEB-C 666300-G22-C
(BSP PD05P-AAS-PTT PD07R-AAS-PFF 666102-3EB-C 666151-244-C 666251-244-C 666301-244-C
PD05A-ASS-STT-B PD07R-AAS-PTT 666100-361-C 666151-244-C 666250-G22-C 666302-EEB-C
Available) PD05R-AAS-PGG-B 666100-362-C 666152-2EB-C 666252-EEB-C 666302-EEB-C
666152-281-C
666251-EEB-C
PD05R-AAS-PTT-B 666100-3EB-C 666152-2EB-C
PD05R-ASS-STT-B 666101-244-C 66616B-2EB-C
Recommended
Filter/ P39124-624 P39124-624 P39224-614 P39334-614 P39354-614 P39454-614
Regulator
Air Line Kit 66073-1 66073-1 66073-2 66084-1 66312 66109
Compact Series PRO Series
arotechsupport@irco.com • (800) 495-0276 / PRO Series Diaphragm Pumps • AROzone.com 25
