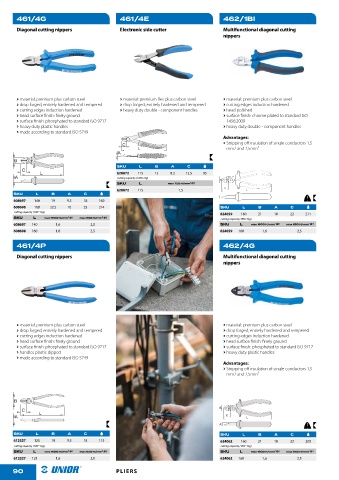

Page 92 - UniorTools-Eng

461/4G 461/4E 462/1BI
Diagonal cutting nippers Electronic side cutter Multifunctional diagonal cutting
nippers

› material: premium plus carbon steel › material: premium &ex plus carbon steel › material: premium plus carbon steel

› drop forged, entirely hardened and tempered › drop forged, entirely hardened and tempered › cutting edges induction hardened
› cutting edges induction hardened › heavy duty double - component handles › head polished

› head surface "nish: "nely ground › surface "nish: chrome plated to standard ISO

› surface "nish: phosphated to standard ISO 9717 1456:2009

› heavy duty plastic handles › heavy duty double - component handles
› made according to standard ISO 5749
Advantages:
› Stripping o! insulation of single conductors 1,5

mm2 and 2,5mm²
SKU L B A C
620072 115 13 8.2 13.5 95
cutting capacity (10N=1kg)

SKU L max 750 N/mm" ∅
620072 115 1,5
SKU L B A C

608697 140 19 9.5 18 169
608698 160 22.5 10 22 214 SKU L B A C
cutting capacity (10N=1kg)
624059 160 21 10 22 211
SKU L max 1600 N/mm" ∅ max 650 N/mm" ∅ cutting capacity (10N=1kg)
608697 140 1,6 2,0 SKU L max 1600 N/mm" ∅ max 650 N/mm" ∅
608698 160 1,6 2,5 624059 160 1,6 2,5
461/4P 462/4G

Diagonal cutting nippers Multifunctional diagonal cutting
nippers

› material: premium plus carbon steel › material: premium plus carbon steel
› drop forged, entirely hardened and tempered › drop forged, entirely hardened and tempered
› cutting edges induction hardened › cutting edges induction hardened

› head surface "nish: "nely ground › head surface "nish: "nely ground
› surface "nish: phosphated to standard ISO 9717 › surface "nish: phosphated to standard ISO 9717

› handles plastic dipped › heavy duty plastic handles
› made according to standard ISO 5749
Advantages:

› Stripping o! insulation of single conductors 1,5
mm2 and 2,5mm²

SKU L B A C SKU L B A C
612327 125 19 9.5 18 115 624062 160 21 10 22 205
cutting capacity (10N=1kg) cutting capacity (10N=1kg)
SKU L max 1600 N/mm" ∅ max 650 N/mm" ∅ SKU L max 1600 N/mm" ∅ max 650 N/mm" ∅
612327 125 1,6 2,0 624062 160 1,6 2,5

90 PLIERS
