Kits

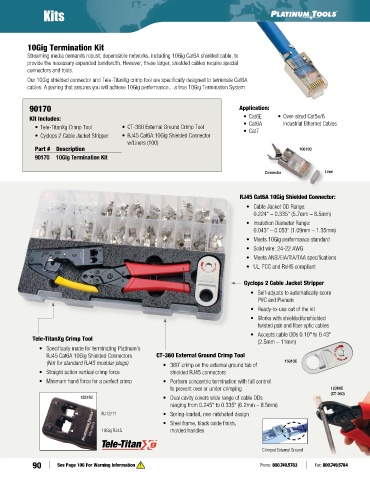

10Gig Termination Kit
Streaming media demands robust, dependable networks, including 10Gig Cat6A shielded cable, to
provide the necessary expanded bandwidth. However, these larger, shielded cables require special
connectors and tools.
Our 10Gig shielded connector and Tele-TitanXg crimp tool are specifically designed to terminate Cat6A
cables. A pairing that assures you will achieve 10Gig performance... a true 10Gig Termination System.

90170 Application:

Kit Includes: • Cat6E • Over-sized Cat5e/6
• Tele-TitanXg Crimp Tool • CT-360 External Ground Crimp Tool • Cat6A Industrial Ethernet Cables
• Cat7
• Cyclops 2 Cable Jacket Stripper • RJ45 Cat6A 10Gig Shielded Connector
w/Liners (100)
Part # Description 106190
90170 10Gig Termination Kit

Connector Liner

RJ45 Cat6A 10Gig Shielded Connector:
• Cable Jacket OD Range:
0.224" – 0.335" (5.7mm – 8.5mm)
• Insulation Diameter Range:
0.043” – 0.053" (1.09mm – 1.35mm)
• Meets 10Gig performance standard
• Solid wire: 24-22 AWG
• Meets ANSI/EIA/TIA/TAA specifications
• UL, FCC and RoHS compliant

Cyclops 2 Cable Jacket Stripper
• Self-adjusts to automatically score
PVC and Plenum
• Ready-to-use out of the kit
• Works with shielded/unshielded
twisted pair and fiber optic cables
• Accepts cable ODs 0.10" to 0.43"
Tele-TitanXg Crimp Tool
(2.5mm – 11mm)
• Specifically made for terminating Platinum’s
RJ45 Cat6A 10Gig Shielded Connectors CT-360 External Ground Crimp Tool
(Not for standard RJ45 modular plugs) • 360˚ crimp on the external ground tab of 15010C
• Straight action vertical crimp force shielded RJ45 connectors
• Minimum hand force for a perfect crimp • Perform concentric termination with full control
to prevent over or under crimping 12360C
(CT-360)
12515C • Dual cavity covers wide range of cable ODs
ranging from 0.245" to 0.335" (6.2mm – 8.5mm)
RJ12/11 • Spring-loaded, non-ratcheted design
• Steel frame, black oxide finish,
10Gig RJ45 molded handles

Crimped External Ground
