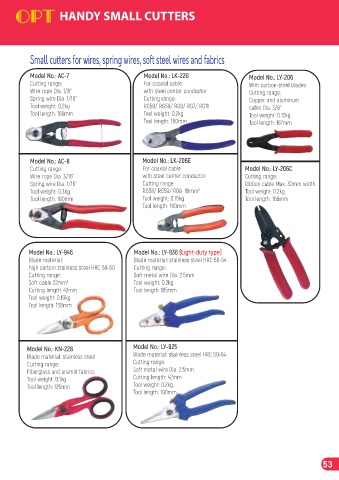

HANDY SMALL CUTTERS

Small cutters for wires, spring wires, soft steel wires and fabrics

Model No.: AC-7 Model No.: LK-22G Model No.: LY-206
Cutting range: For coaxial cable With carbon-steel blades
Wire rope Dia. 1/8” with steel center conductor Cutting range:
Spring wire Dia. 1/16” Cutting range: Copper and aluminum
Tool weight: 0.2kg RG58/ RG59/ RG6/ RG7/ RG11 cable Dia. 3/8”
Tool length: 165mm Tool weight: 0.2kg Tool weight: 0.12kg
Tool length: 160mm Tool length: 167mm

Model No.: AC-8 Model No.: LK-206E
Cutting range: For coaxial cable Model No.: LY-206C
Wire rope Dia. 3/16” with steel center conductor Cutting range:
Spring wire Dia. 1/16” Cutting range: Ribbon cable Max. 30mm width
Tool weight: 0.3kg RG58/ RG59/ RG6 16mm 2 Tool weight: 0.2kg
Tool length: 180mm Tool weight: 0.15kg Tool length: 168mm
Tool length: 160mm

Model No.: LY-946 Model No.: LY-936 (Light-duty type)
Blade material: Blade material: stainless steel HRC 50-54
high carbon stainless steel HRC 58-60 Cutting range:
Cutting range: Soft metal wire Dia. 2.5mm
Soft cable 22mm Tool weight: 0.2kg
2
Cutting length: 42mm Tool length: 165mm
Tool weight: 0.19kg
Tool length: 138mm

Model No.: KN-228 Model No.: LY-925
Blade material: stainless steel Blade material: stainless steel HRC 50-54
Cutting range: Cutting range:
Fiberglass and aramid fabrics Soft metal wire Dia. 2.5mm
Tool weight: 0.1kg Cutting length: 42mm
Tool length: 125mm Tool weight: 0.2kg
Tool length: 190mm

53
