Page 57 - OPT英文手动工具2023

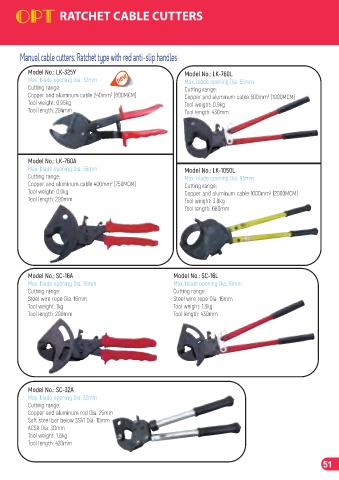

RATCHET CABLE CUTTERS

Manual cable cutters: Ratchet type with red anti-slip handles

Model No.: LK-325Y Model No.: LK-760L
Max. blade opening Dia. 32mm Max. blade opening Dia. 55mm
Cutting range: Cutting range:
Copper and aluminum cable 240mm (600MCM) Copper and aluminum cable 500mm (1000MCM)
2
2
Tool weight: 0.95kg Tool weight: 0.9kg
Tool length: 294mm Tool length: 430mm

Model No.: LK-760A
Max. blade opening Dia. 55mm Model No.: LK-1050L
Cutting range: Max. blade opening Dia. 95mm
Copper and aluminum cable 400mm (750MCM) Cutting range:
2
Tool weight: 0.9kg Copper and aluminum cable 1000mm (2000MCM)
2
Tool length: 290mm Tool weight: 3.8kg
Tool length: 680mm

Model No.: SC-16A Model No.: SC-16L
Max. blade opening Dia. 16mm Max. blade opening Dia. 16mm
Cutting range: Cutting range:
Steel wire rope Dia. 16mm Steel wire rope Dia. 16mm
Tool weight: 1kg Tool weight: 1.3kg
Tool length: 290mm Tool length: 430mm

Model No.: SC-32A
Max. blade opening Dia. 32mm
Cutting range:
Copper and aluminum rod Dia. 25mm
Soft steel bar below SS41 Dia. 10mm
ACSR Dia. 30mm
Tool weight: 1.6kg
Tool length: 420mm

51
